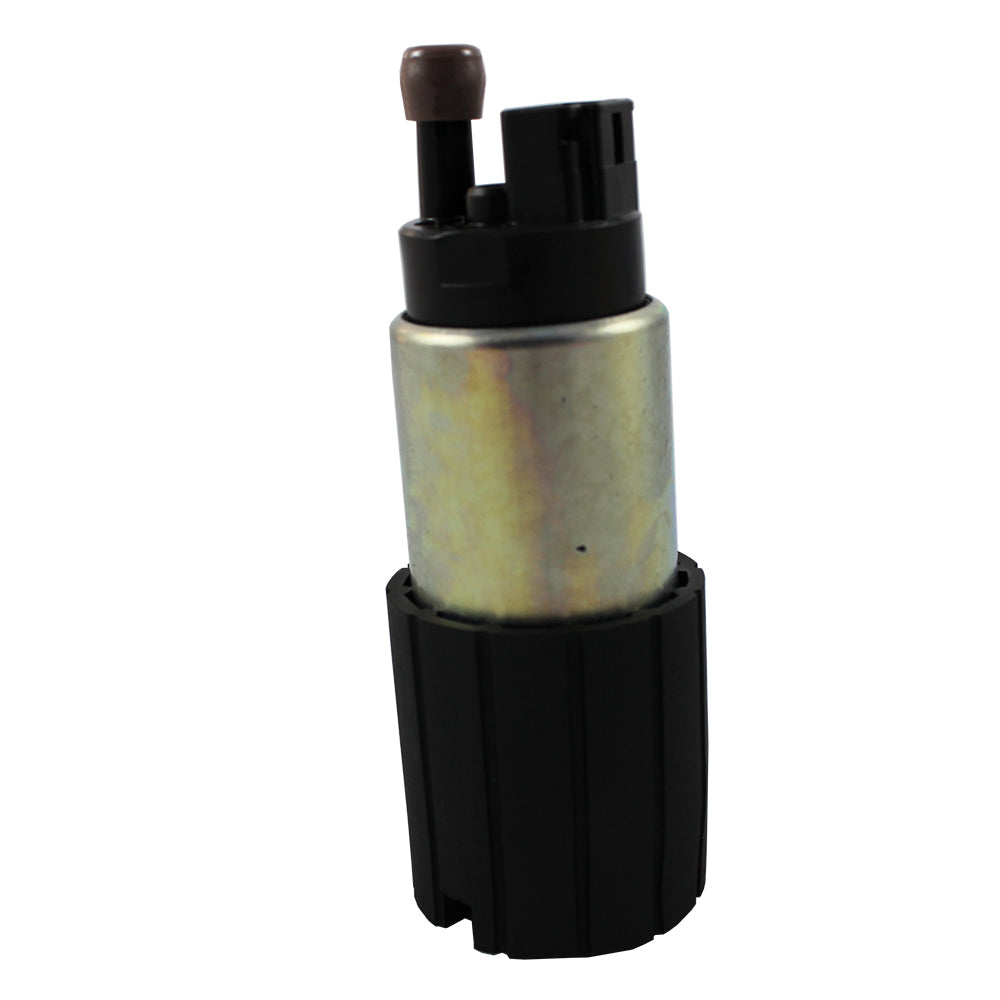

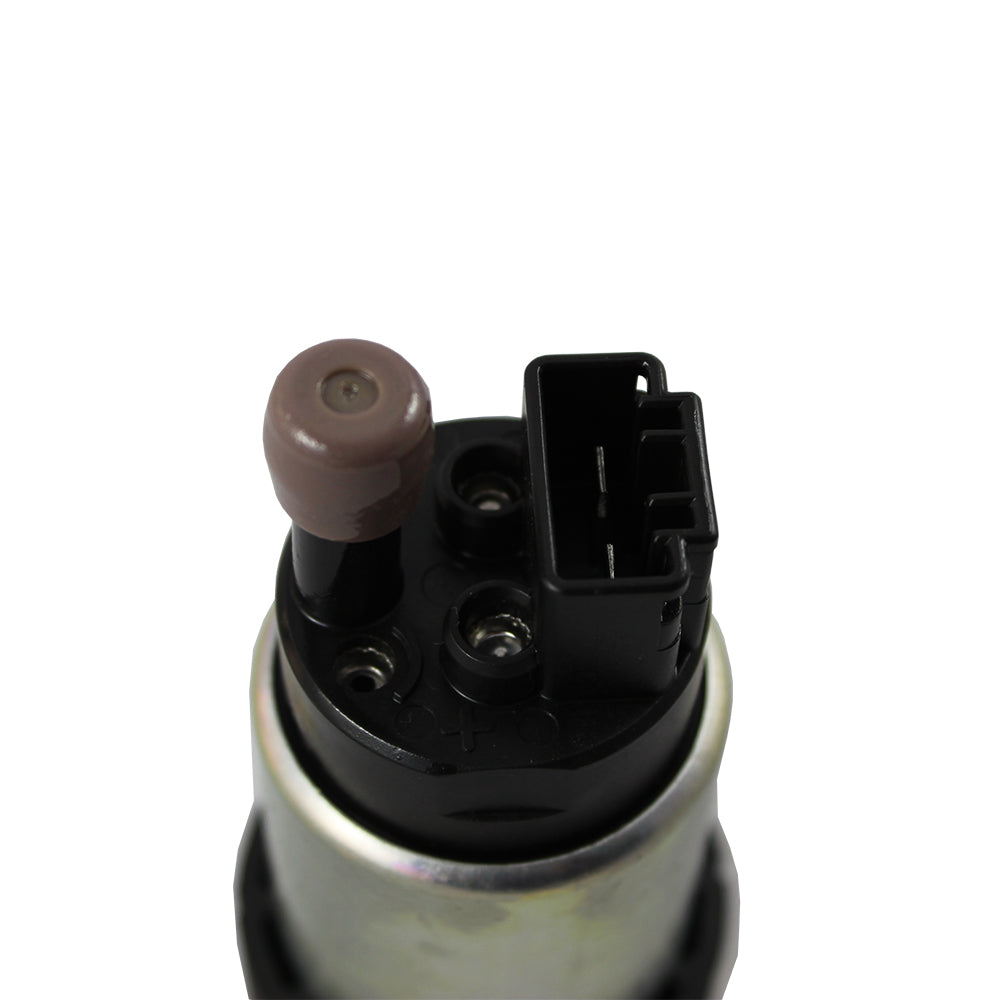

JDMSPEED 255LPH High Performance Fuel Pump With Install Kit GSS341 Replacement New

FEATURE:

Composite Turbine Impeller design brings quiet operation
· Offset Inlet easily to install
· 39mm  diameter in tank fuel pump fits most applications
· Designed for high output naturally aspirated and forced induction EFI vehicles
· For gasoline vehicles (pump life may be diminished when used with E85 fuel)

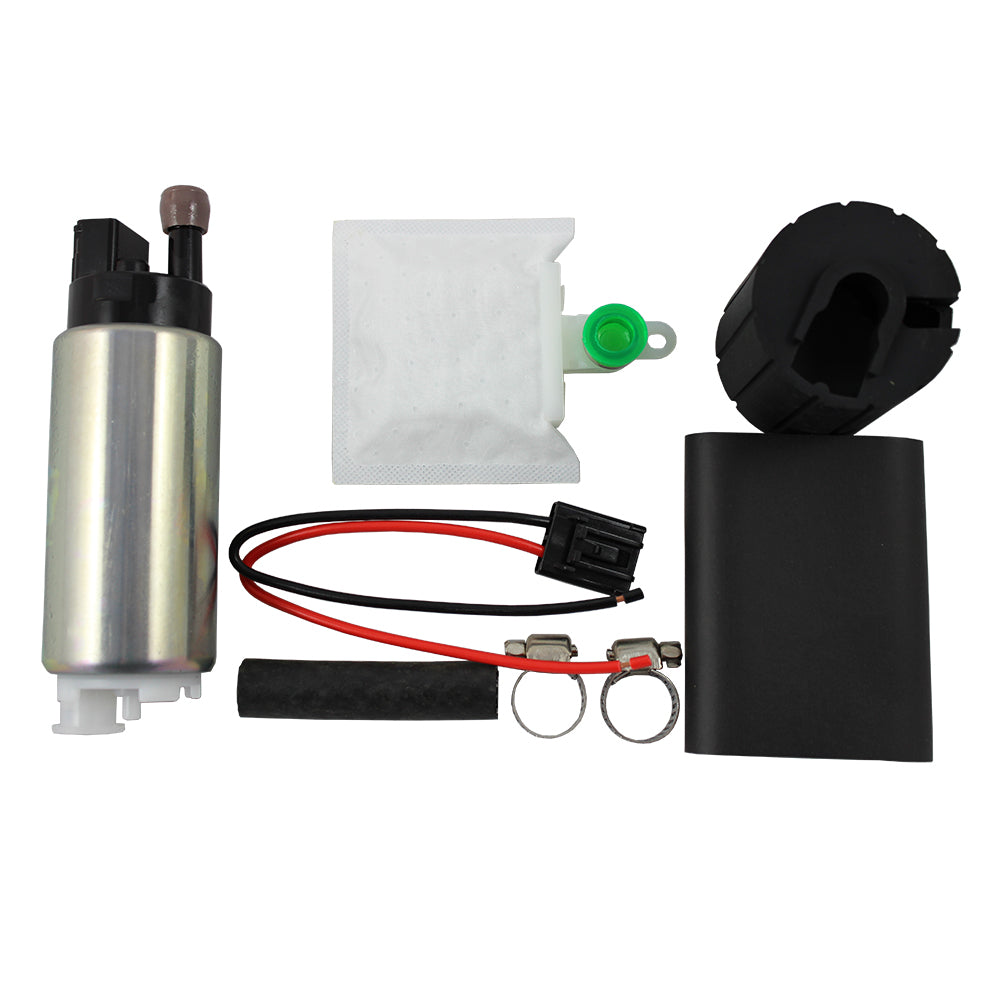

· Typical & complete kits exactly same as above title picture showed.
· 1 x Fuel Strainer: 30 micro gradient density material
· 1 x Universal connector
· 1 x Sponge Sleeve
· 1 x Rubber harness
· 1 x Rubber hose
· 2 x Stainless Steel Clamps

Techinal Data

· Min Voltage Input:6V
· Max Voltage Input:18V
· PRV Activation:0-100PSI
· Flow Rate: 255LPH/43PSI(13.5V) & 190LPH/80PSI(13.5V)
· Current(40PSI):<13A(13.5V)
· Horsepower Capabilities:  Up to 600Hp for naturally aspirated engines and 500Hp for turbo/supercharged ones separately.

Techinal Data

· Min Voltage Input:6V
· Max Voltage Input:18V
· PRV Activation:0-100PSI
· Flow Rate: 255LPH/43PSI(13.5V) & 190LPH/80PSI(13.5V)
· Current(40PSI):<13A(13.5V)
· Horsepower Capabilities:  Up to 600Hp for naturally aspirated engines and 500Hp for turbo/supercharged ones separately.


Mechanical Spec

· Overall Length (tip to tip): 5"(123MM)
· Weight:12.6oz (360g)
· Length of Pump Body Metal Case: 3 1/8"(80MM)
· Pump Body Diameter: 1 1/2"(39MM)
· Inlet Fitting: 7.7mm ID, 11.0mm OD
· Outlet Fitting: 5/16" hose clamp
