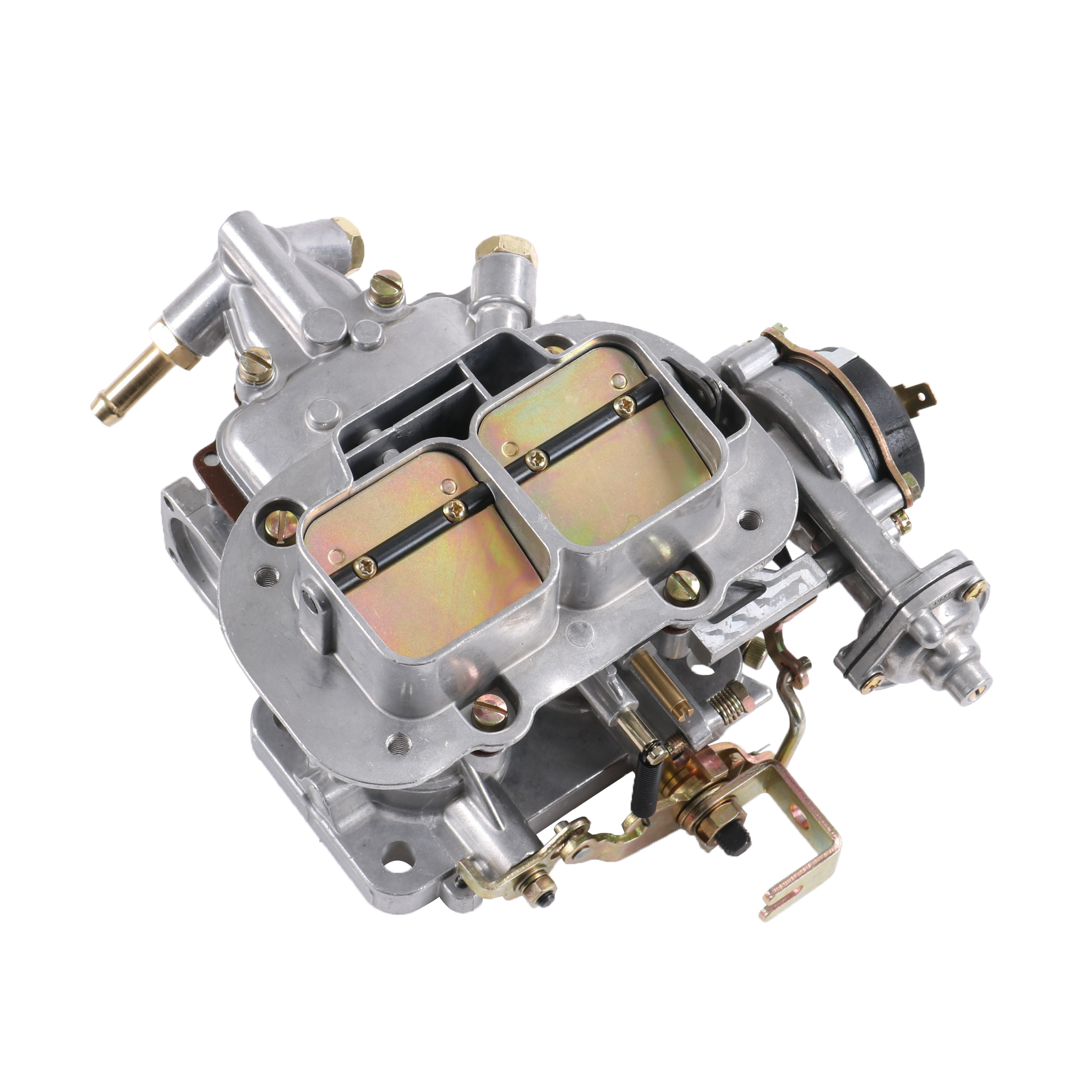

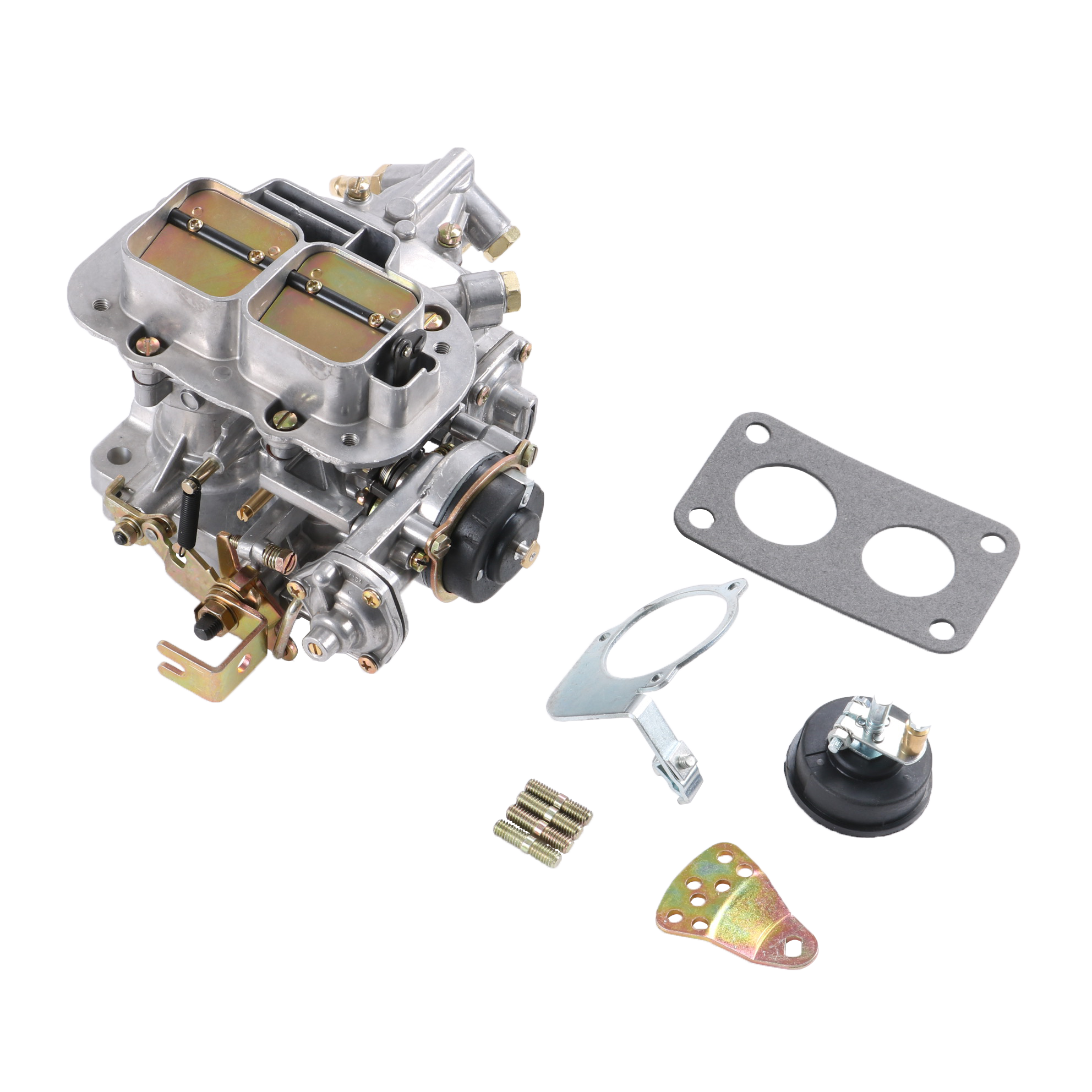

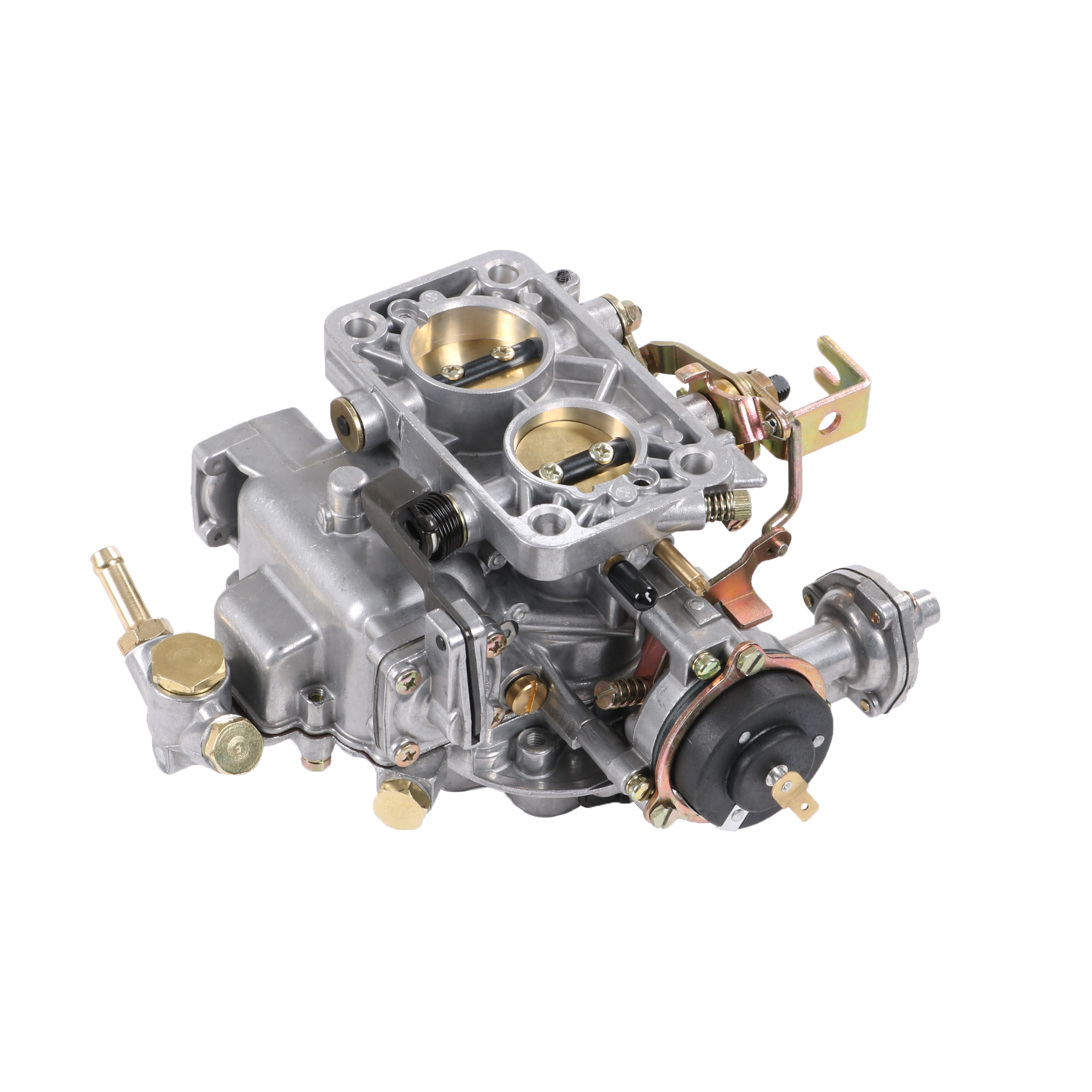

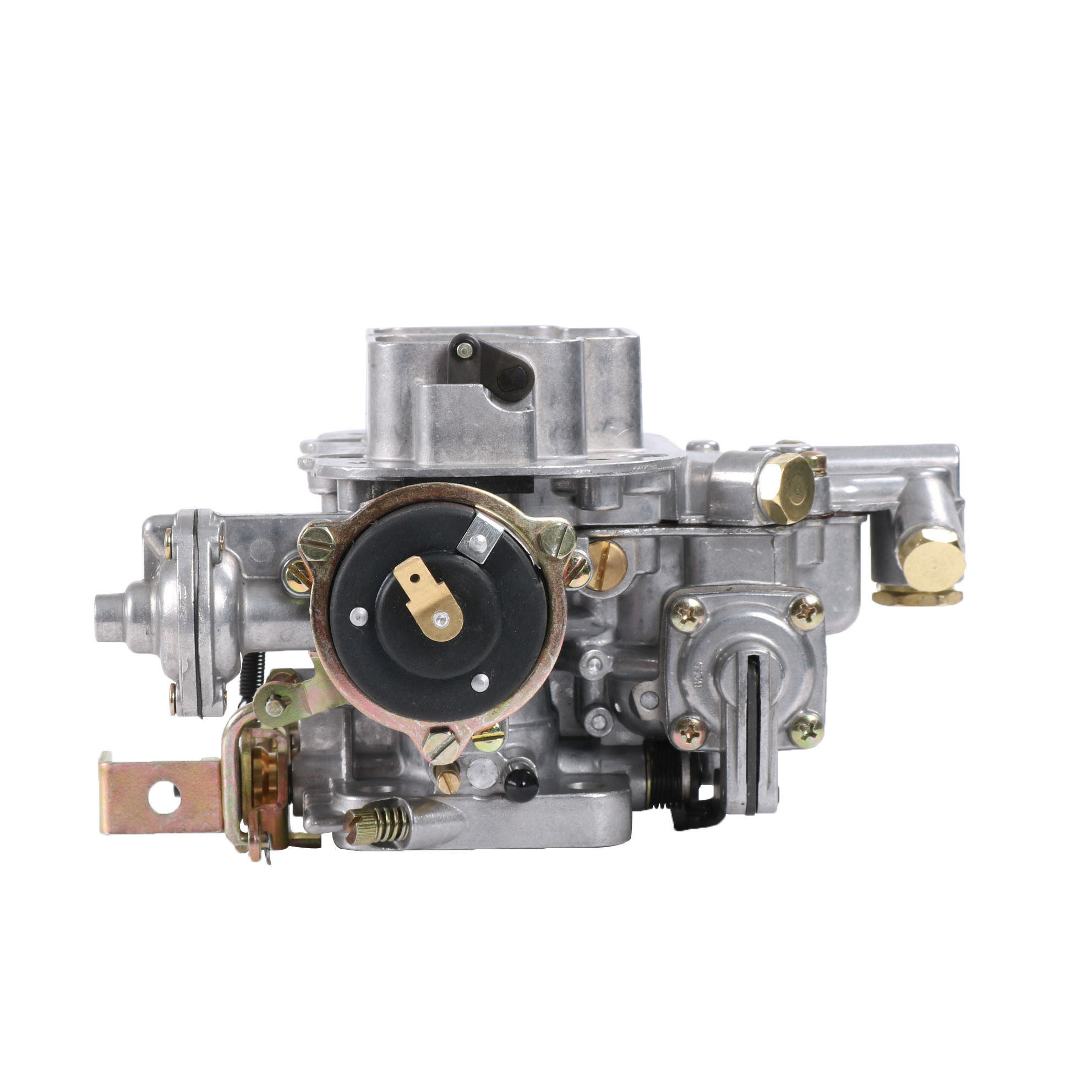

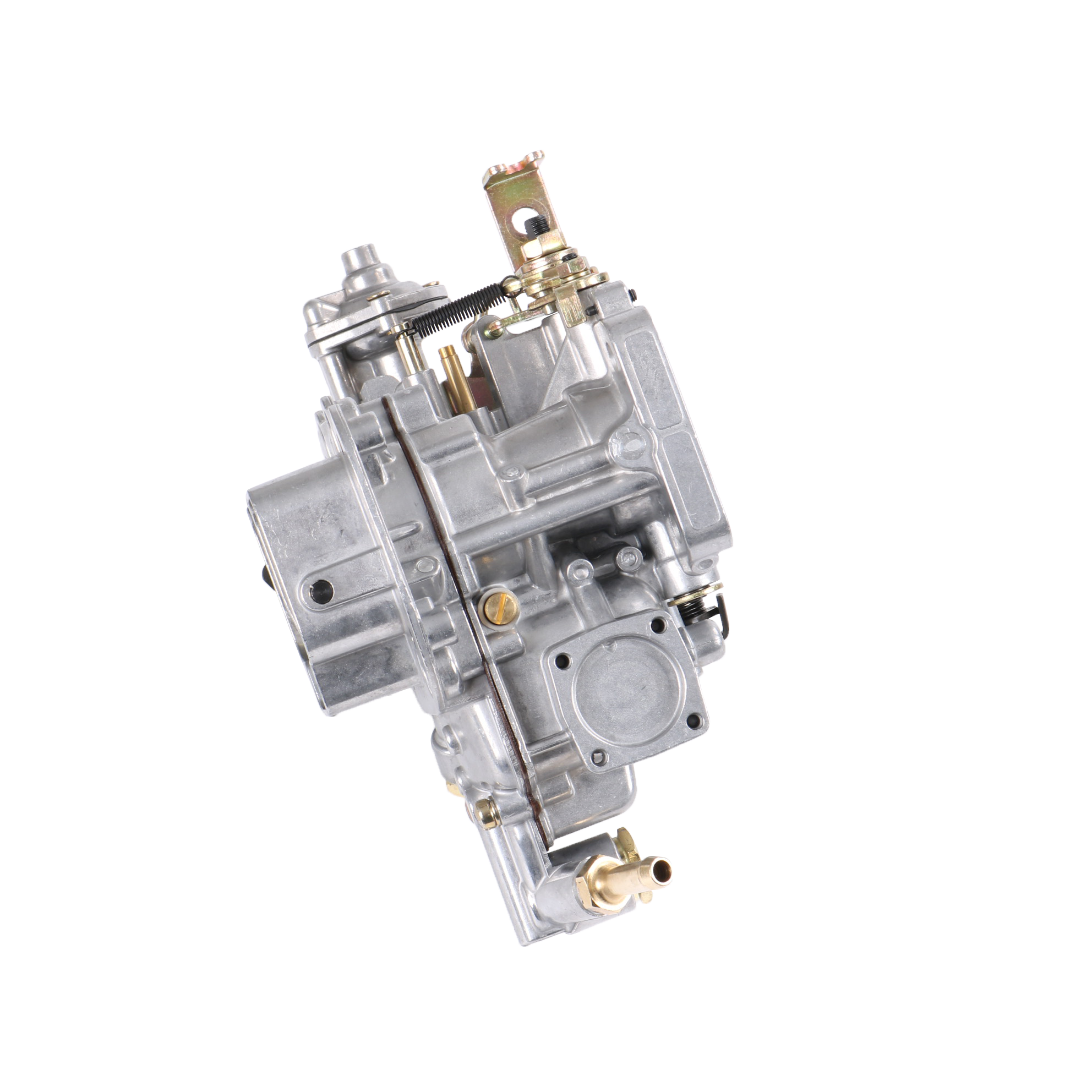

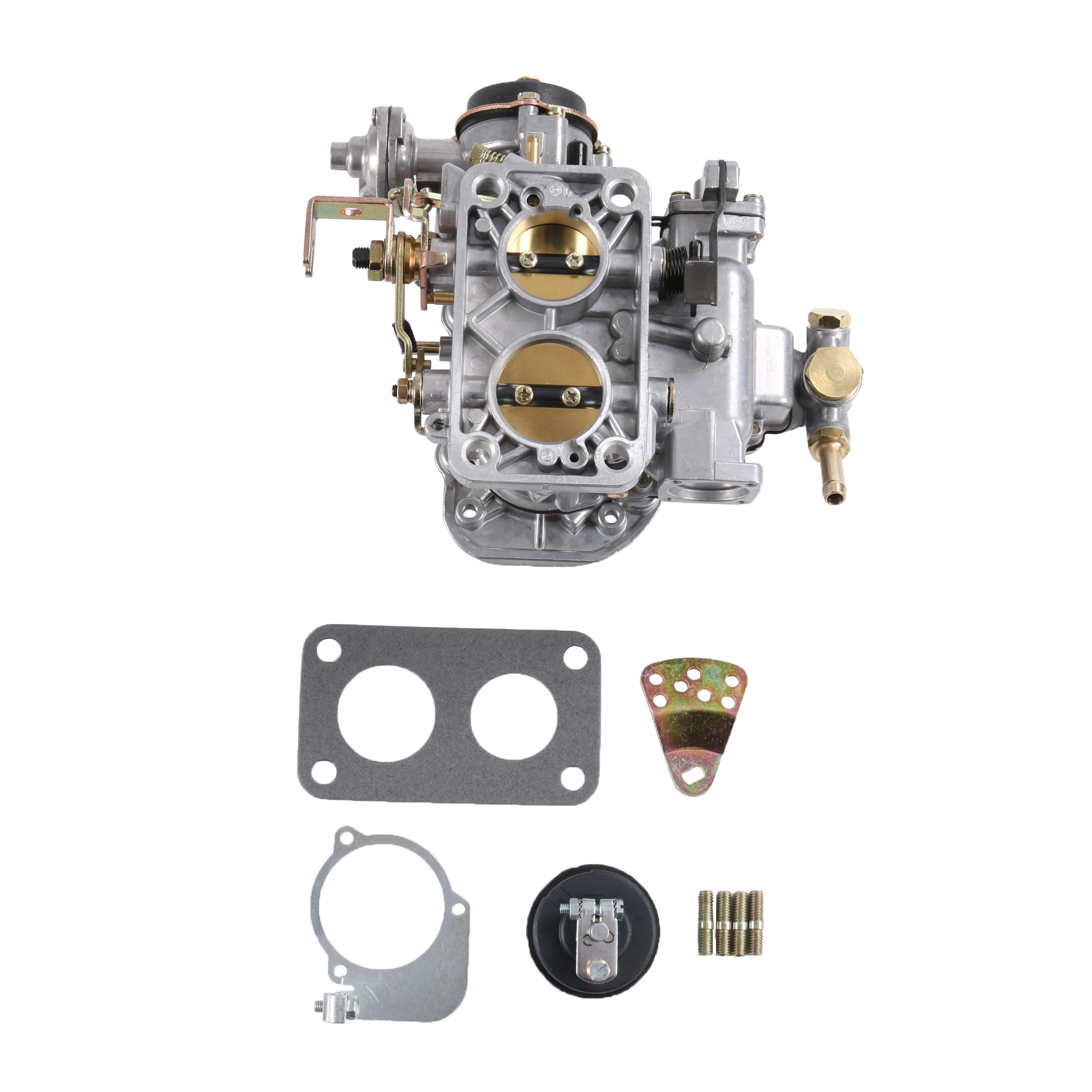

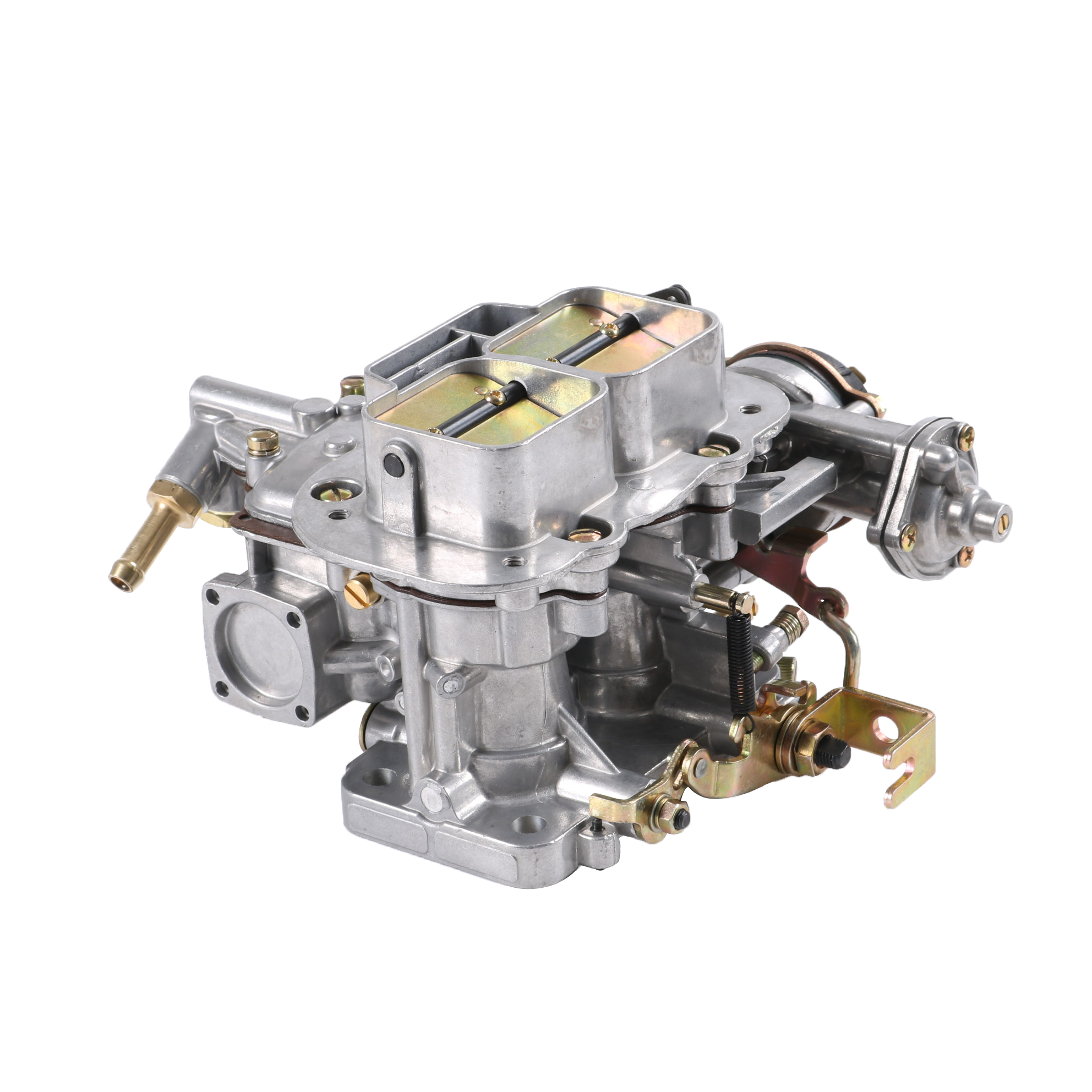

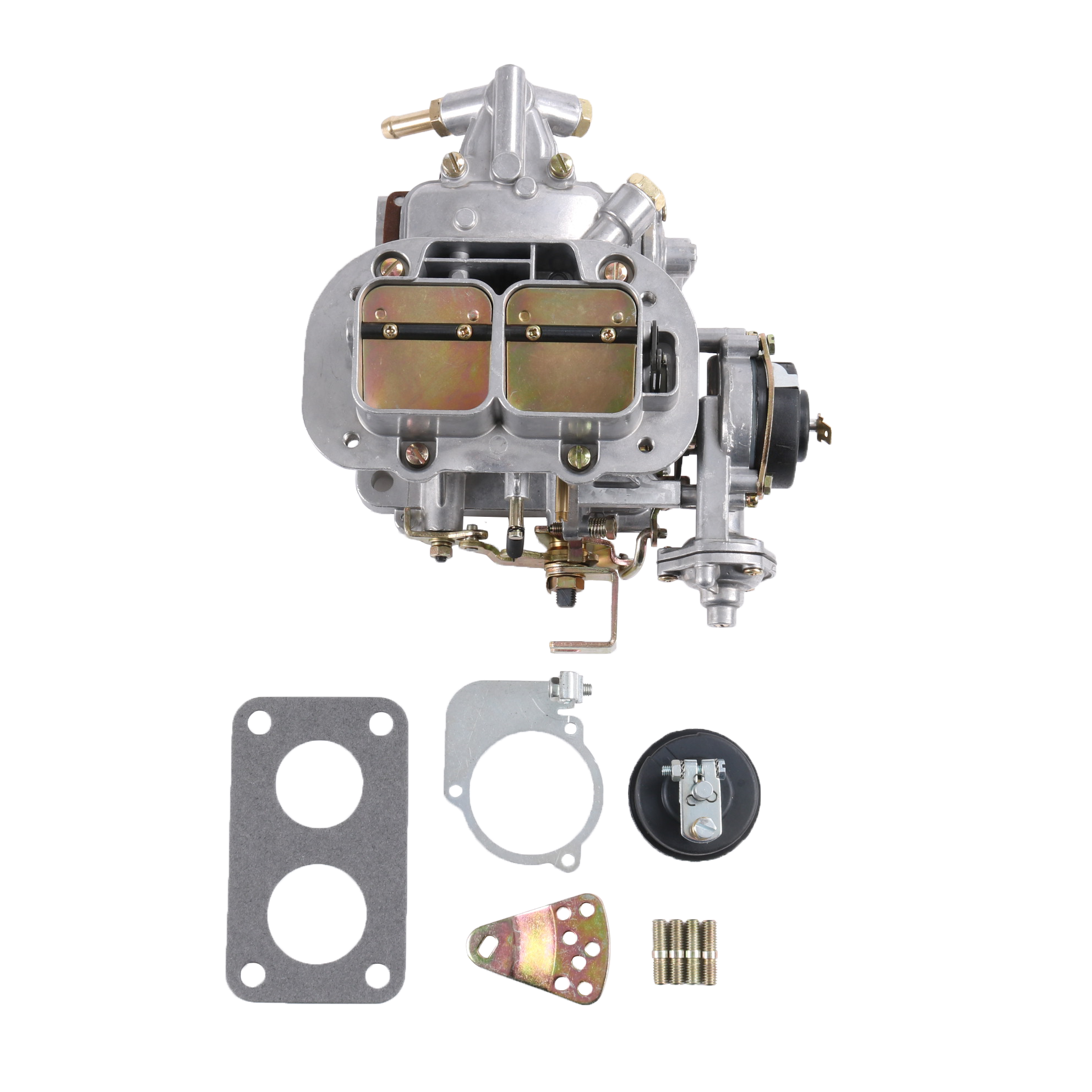

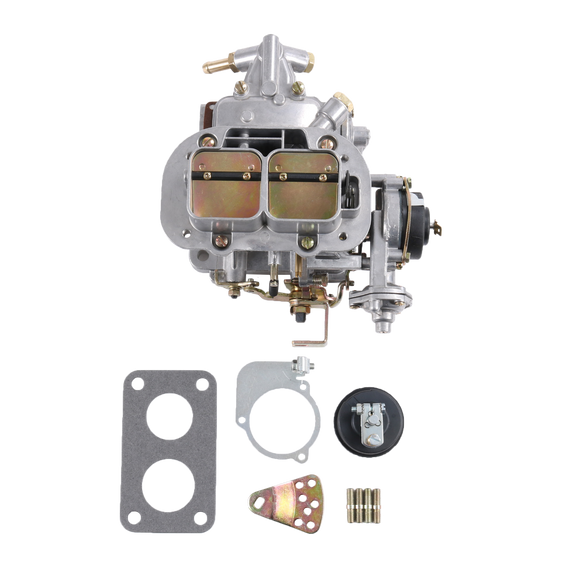

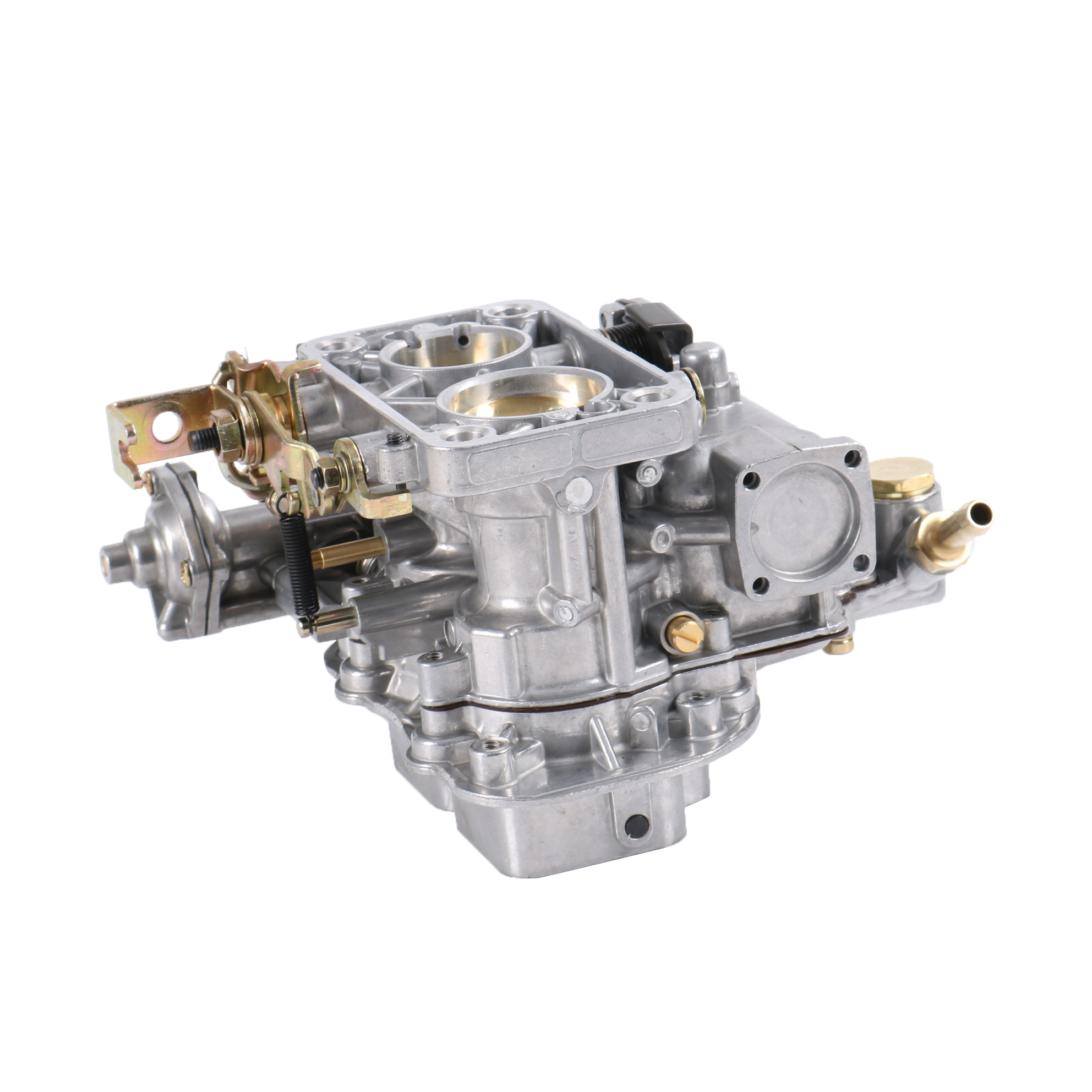

JDMSPEED Carburetor For Weber 32/36 DGV DGEV MG Mazda B2200 Nissan Pickup 20R 22R CARB

D317-CBDGV

  • $95.60
    Unit price per
  • Save $29.37
Shipping calculated at checkout.

Only 297 left!

FREE SHIPPING IN THE USA

ONE YEAR WARRANTY

Features:
100% brand new and high quality
Interchanges with following part numbers:
22680033B, 22680.033B
99004.300, 99004300
99005.068, 99005068
99217.332S, 99217332S

primary Venturi: φ26mm
Secondary Venturi:φ10.5mm
Primary Auxiliary Venturi:φ27mm
Secondary Auxiliary Venturi:φ10.5mm
Primary Main Jet:1.4mm
Secondary Main Jet:1.4mm
Primary Air Corrector Jet:1.7mm
Secondary Air Corrector Jet:1.6mm
Primary Emulsion Tube: F50
Secondary Emulsion Tube: F50
Primary idle Jet:0.6mm
Secondary Idle Jet: 0.5mm
Pump Jet:φ0.5mm
Needle Valve: 2.0mm
Float Measurement :47mm

Fitment:
Toyota Pickup Celica Corona 20R and 22R engines
1986-1987 Mazda B2000 2.0L; 1987-1993 Mazda B2200 2.2L
1981-1982 Nissan Pickup Z20 2000cc PL720
1981-1983 Nissan Pickup Z22 2200cc PL720
1980-1981 Nissan 200SX
1986 Nissan Sentra 1.5L 1.6L
1984 Nissan 720 2.0L 2.2L
1983 Nissan Pulsar 1.6L
1969-1972 Datsun Pickup L16 1600cc PL521, Datsun 510
1973-1974 Datsun Pickup L18 1800cc PL620, 510, 610, 710
1975-1980 Datsun Pickup L20 2000cc PL620, 510, 610, 710
1982- 1978 Datsun 200SX 2.2L
1972-1990 CJ5, CJ7, CJ8, Wrangler Cherokee 258Ci with 2BBL Carter BBD Carb
And other vehicles equipped with 2BBL Carter BBD carburetor
