JDMSPEED FOR Gen III GM LS V8 to TH350/700R4 Transmission Adapter Kit 2004R, 700R4
FREE SHIPPING IN THE USA
ONE YEAR WARRANTY
Features:
100% brand new and high quality

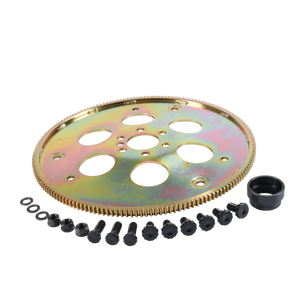

Package Includes:
100% brand new and high quality

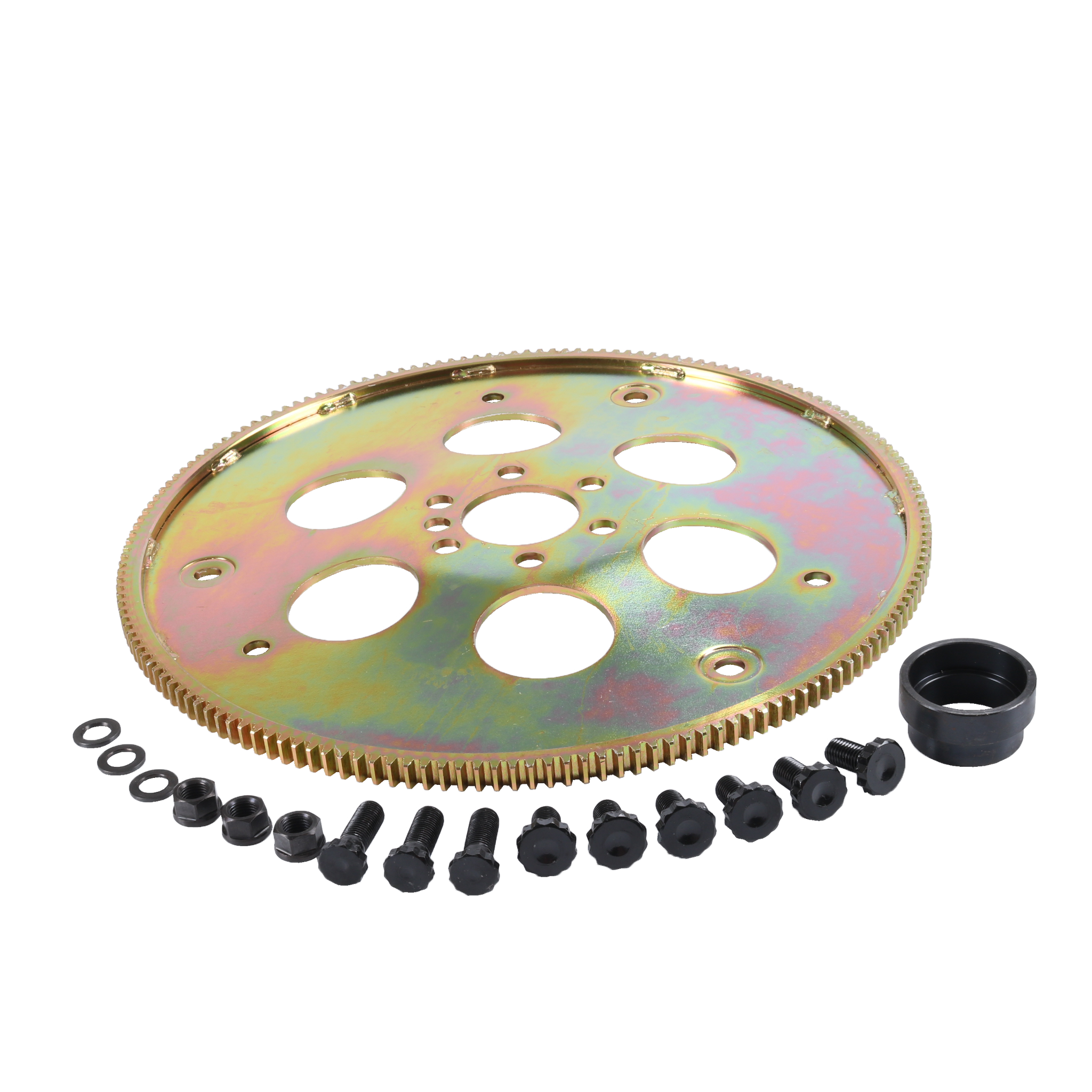

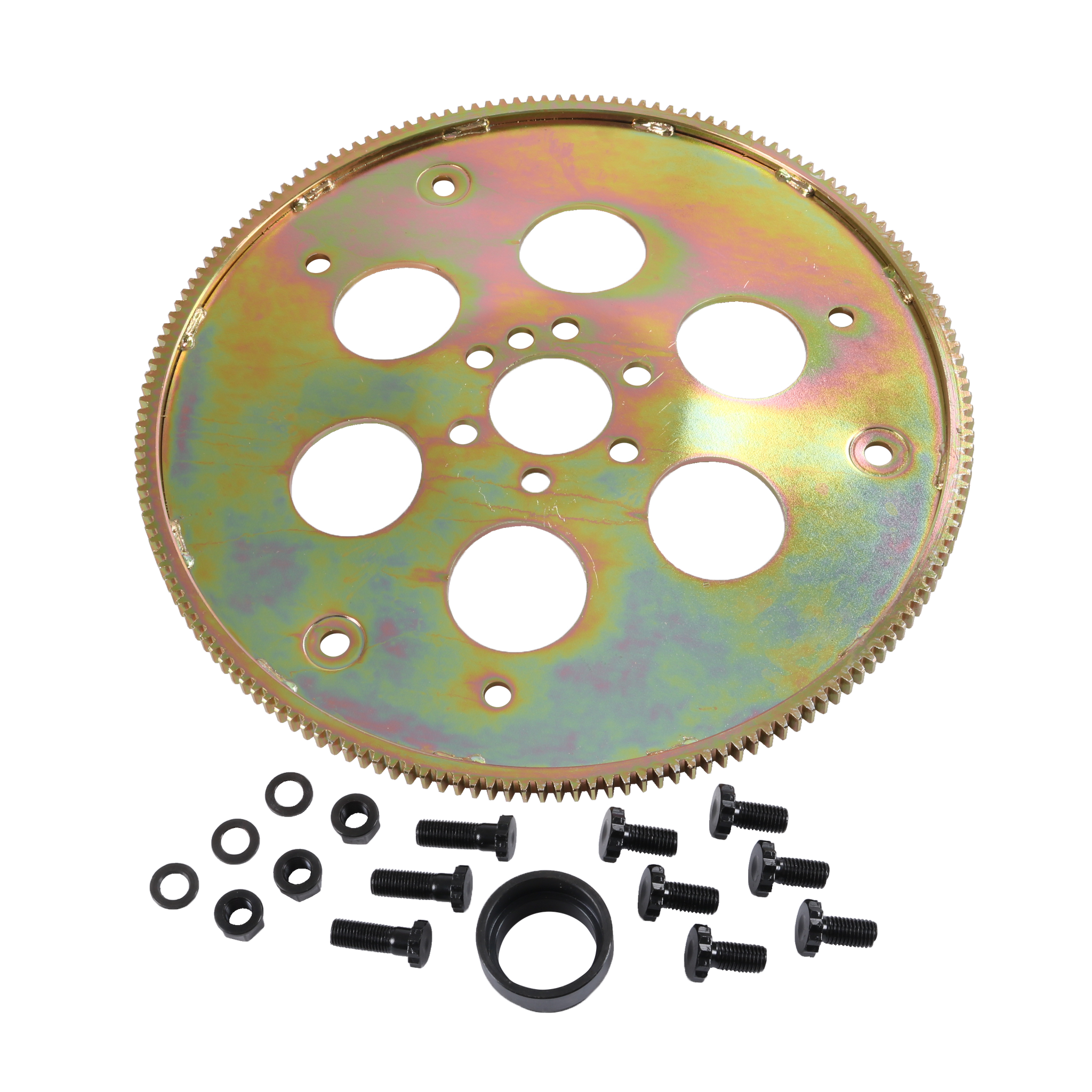

Package Includes:

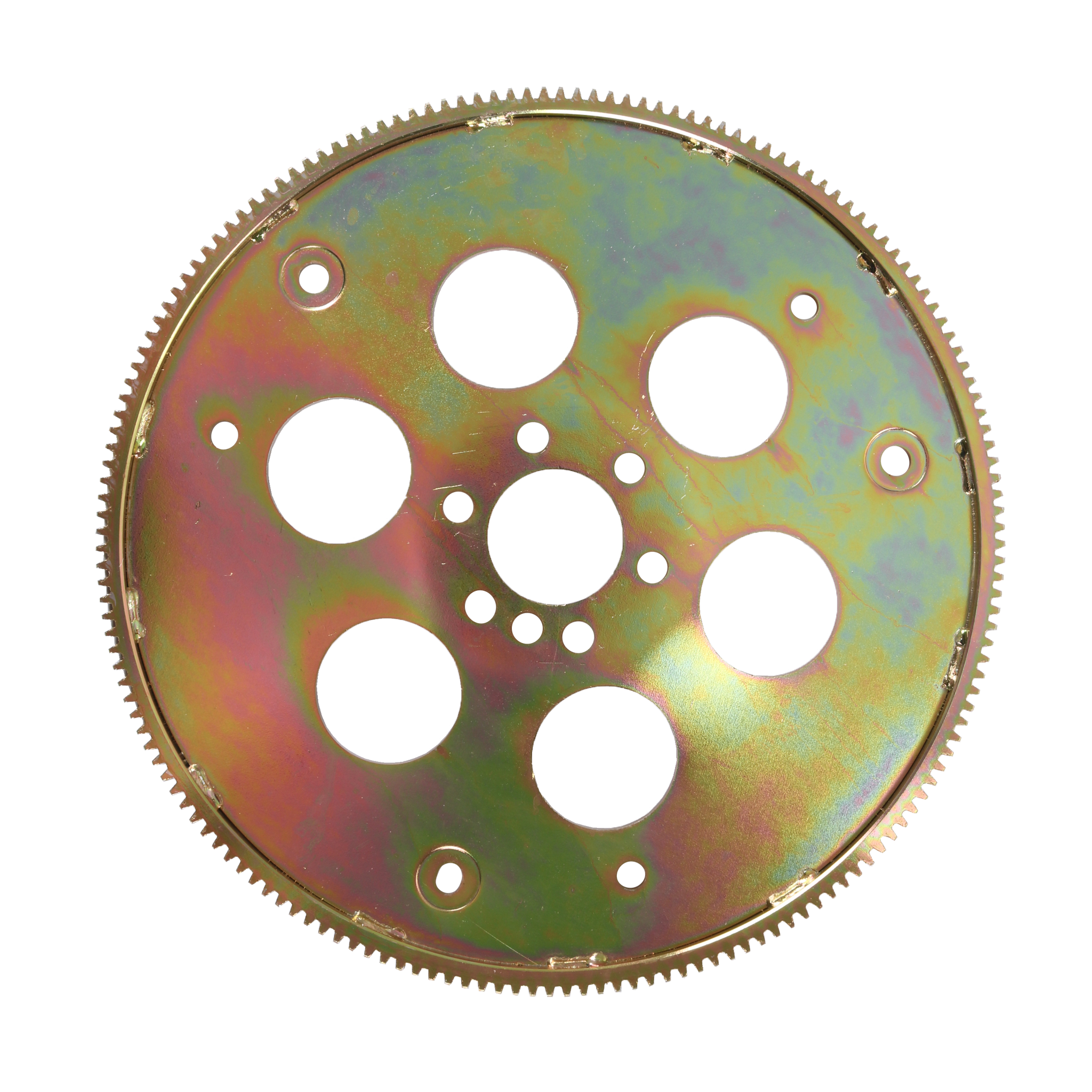

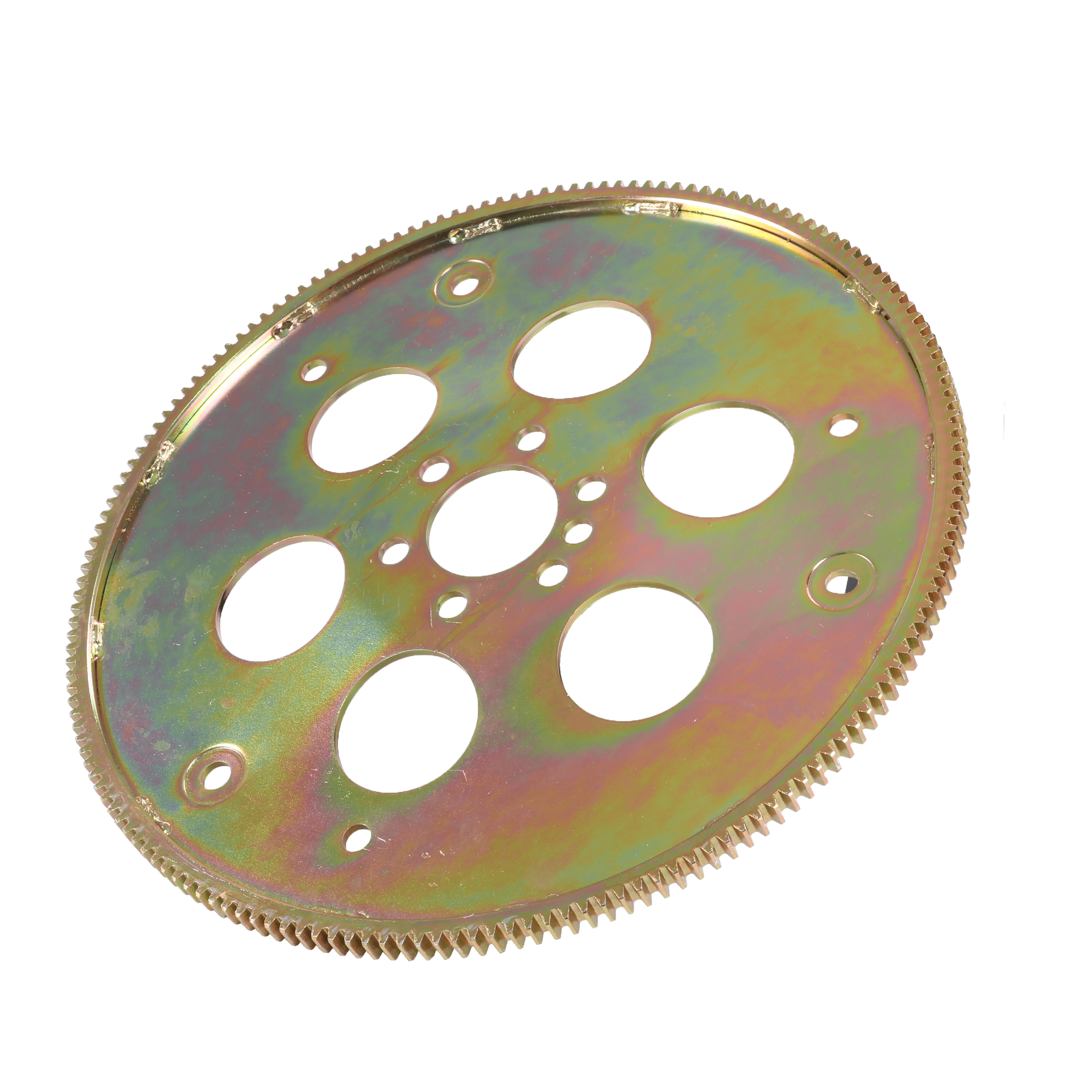

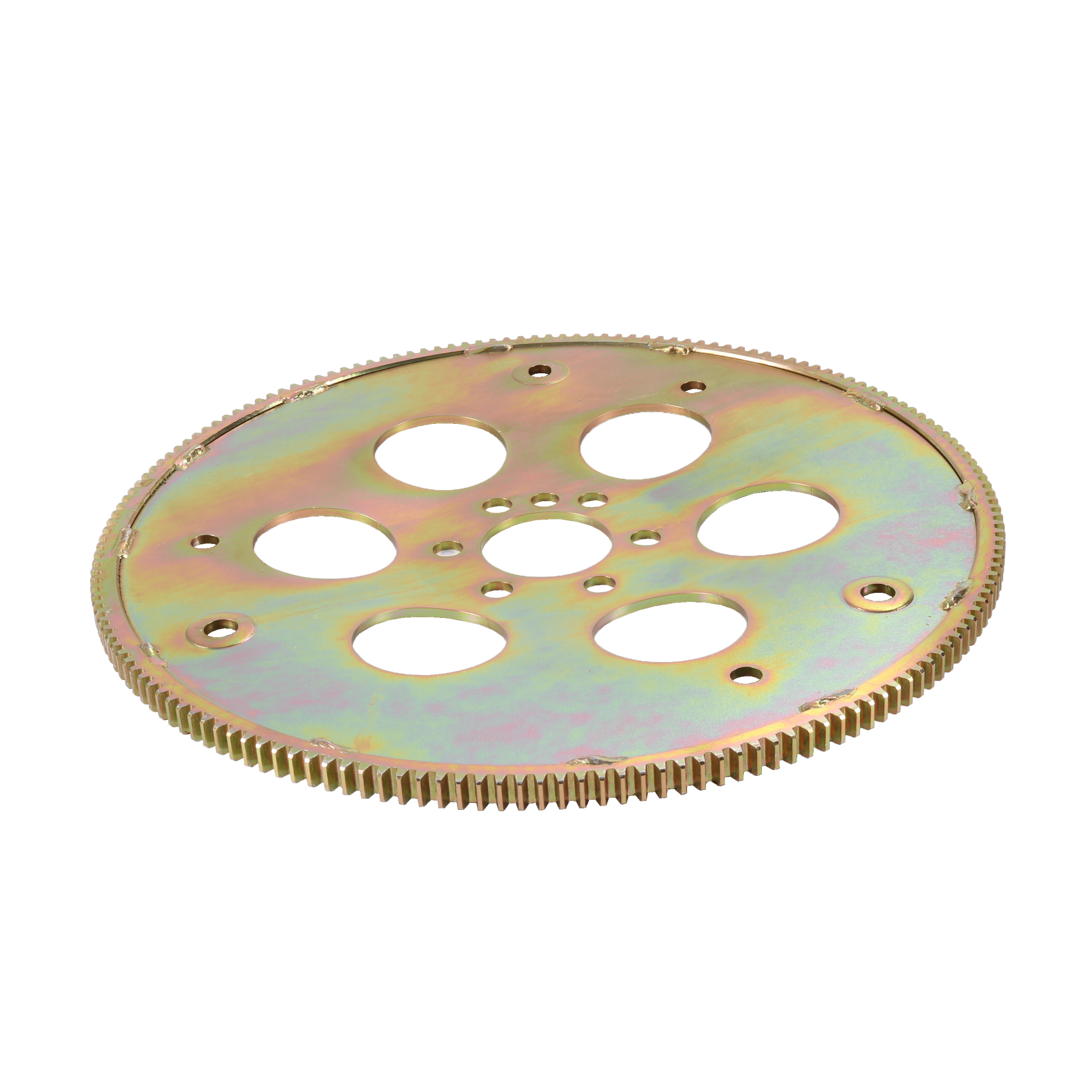

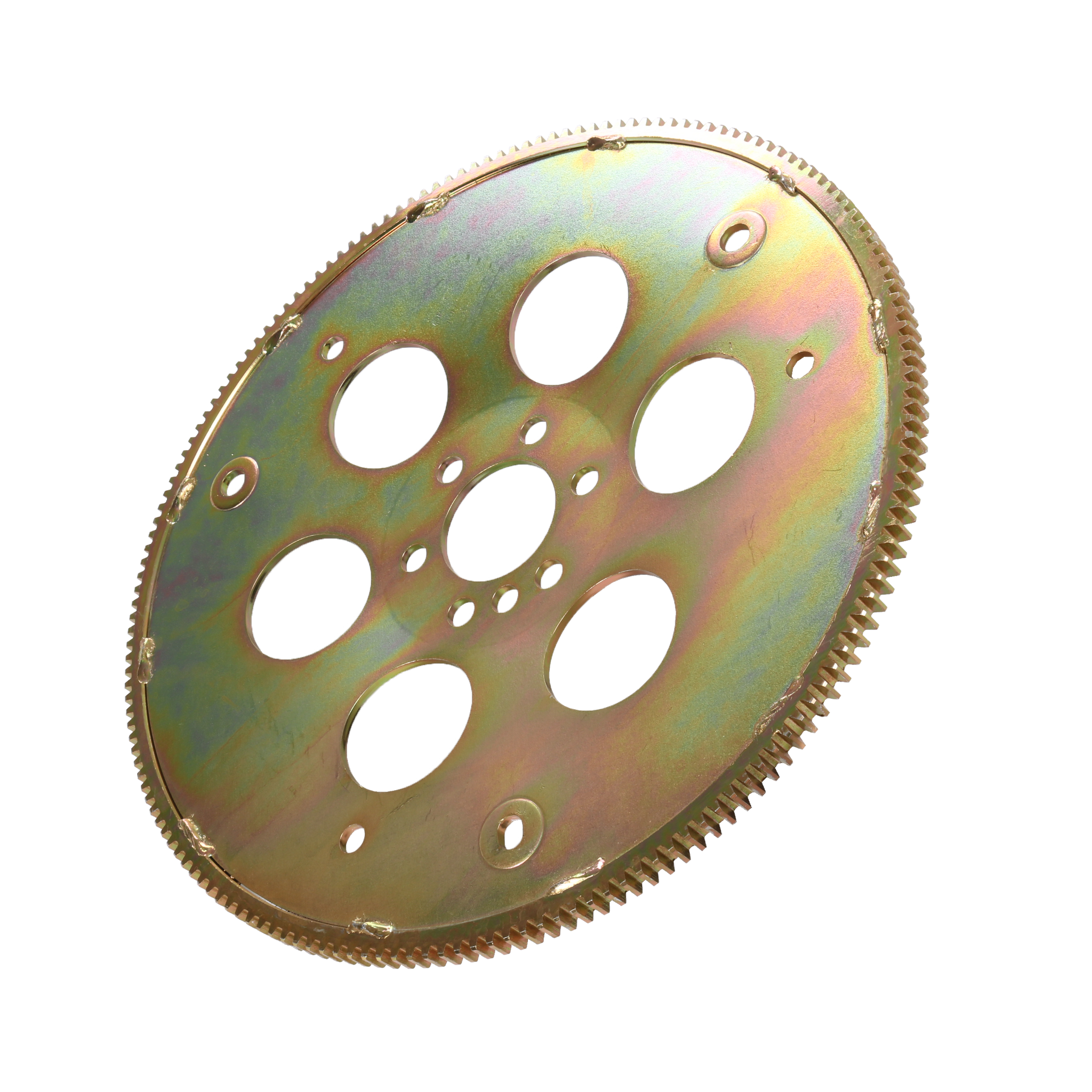

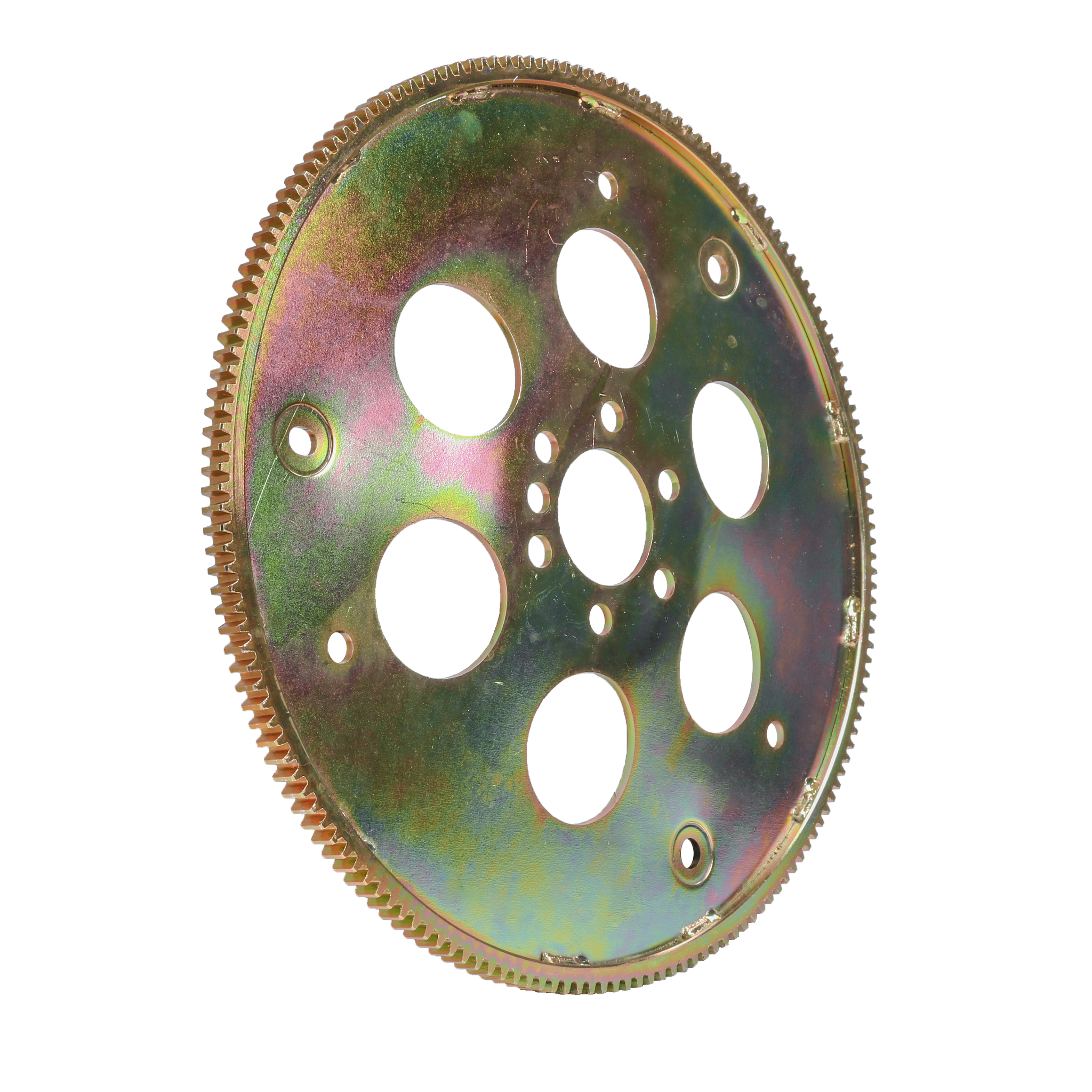

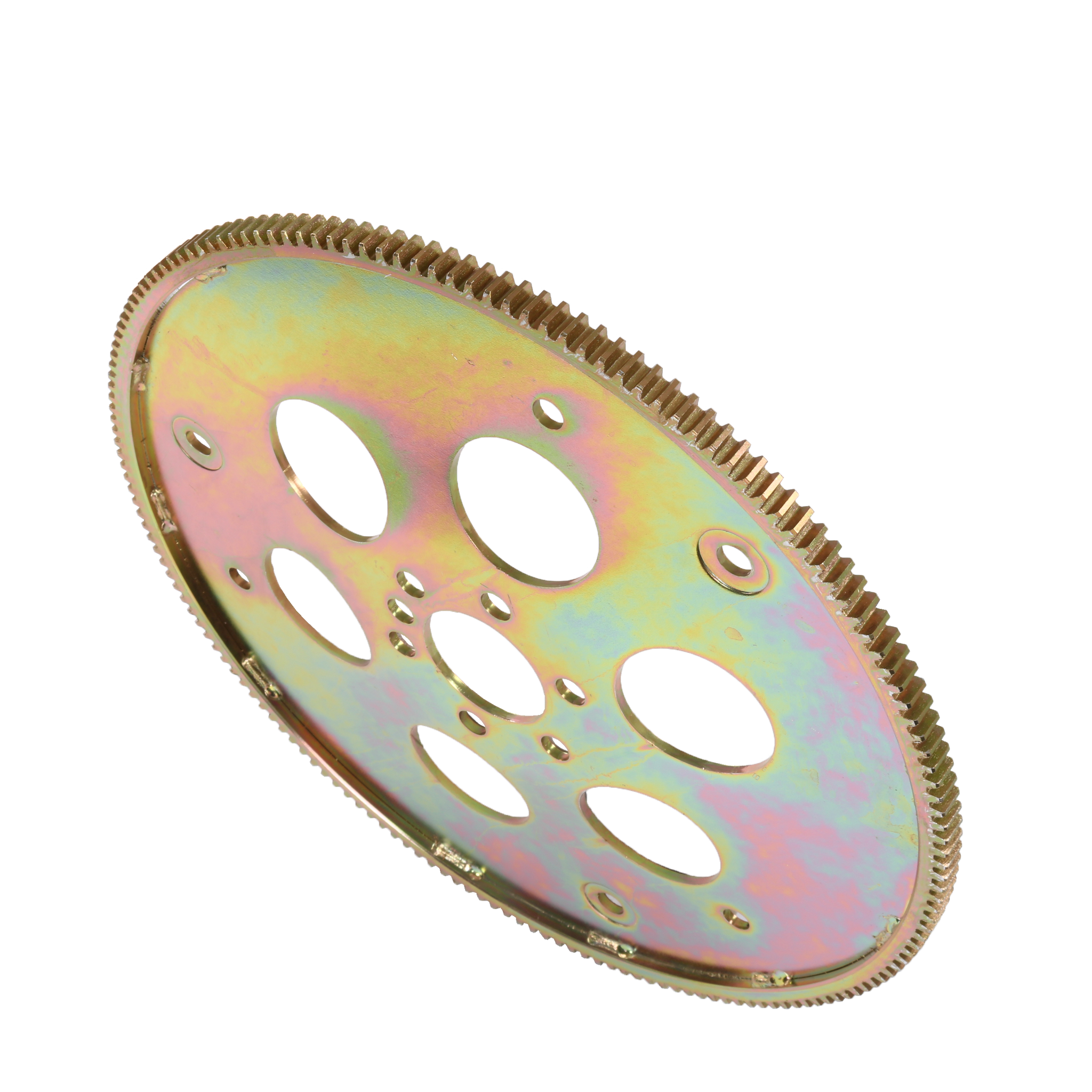

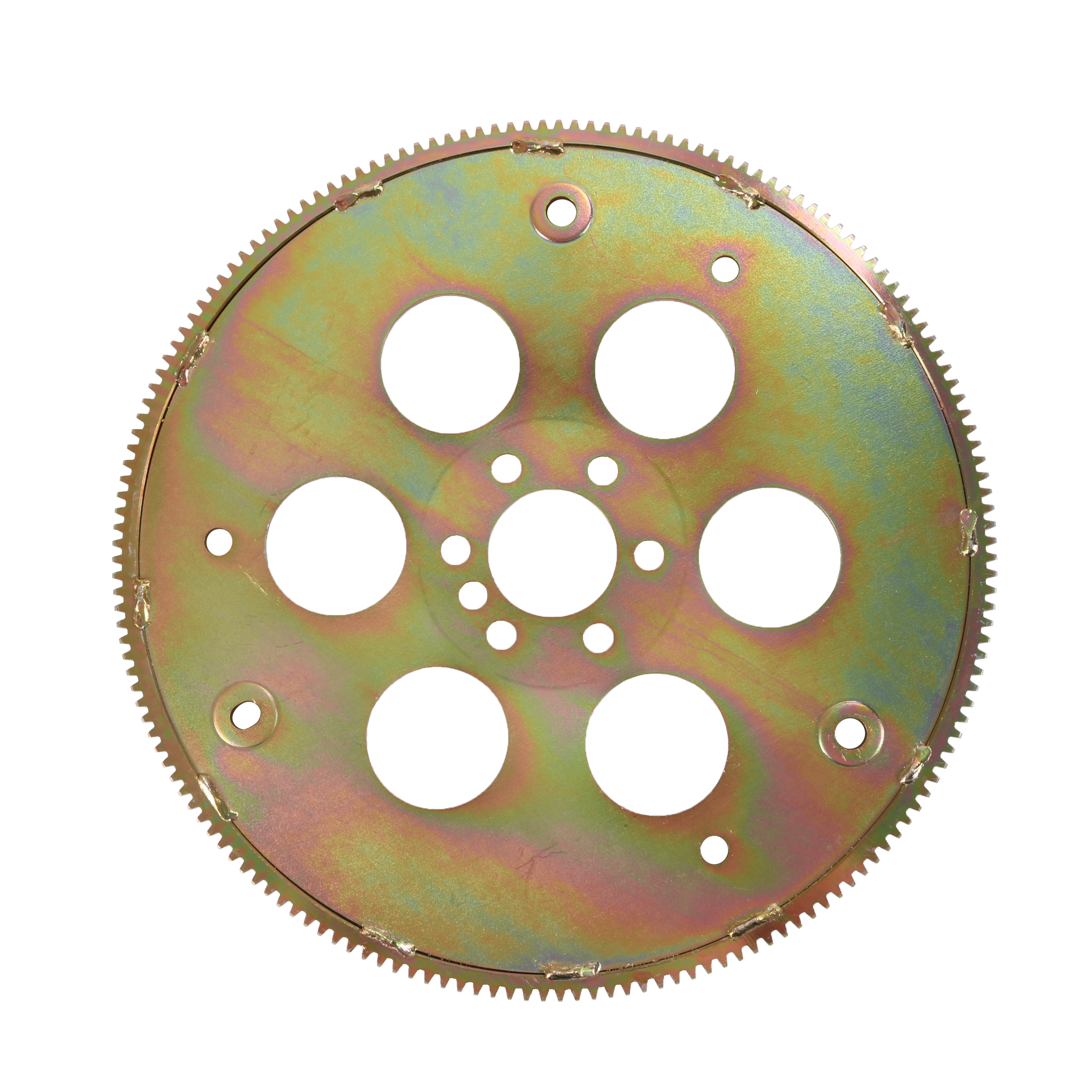

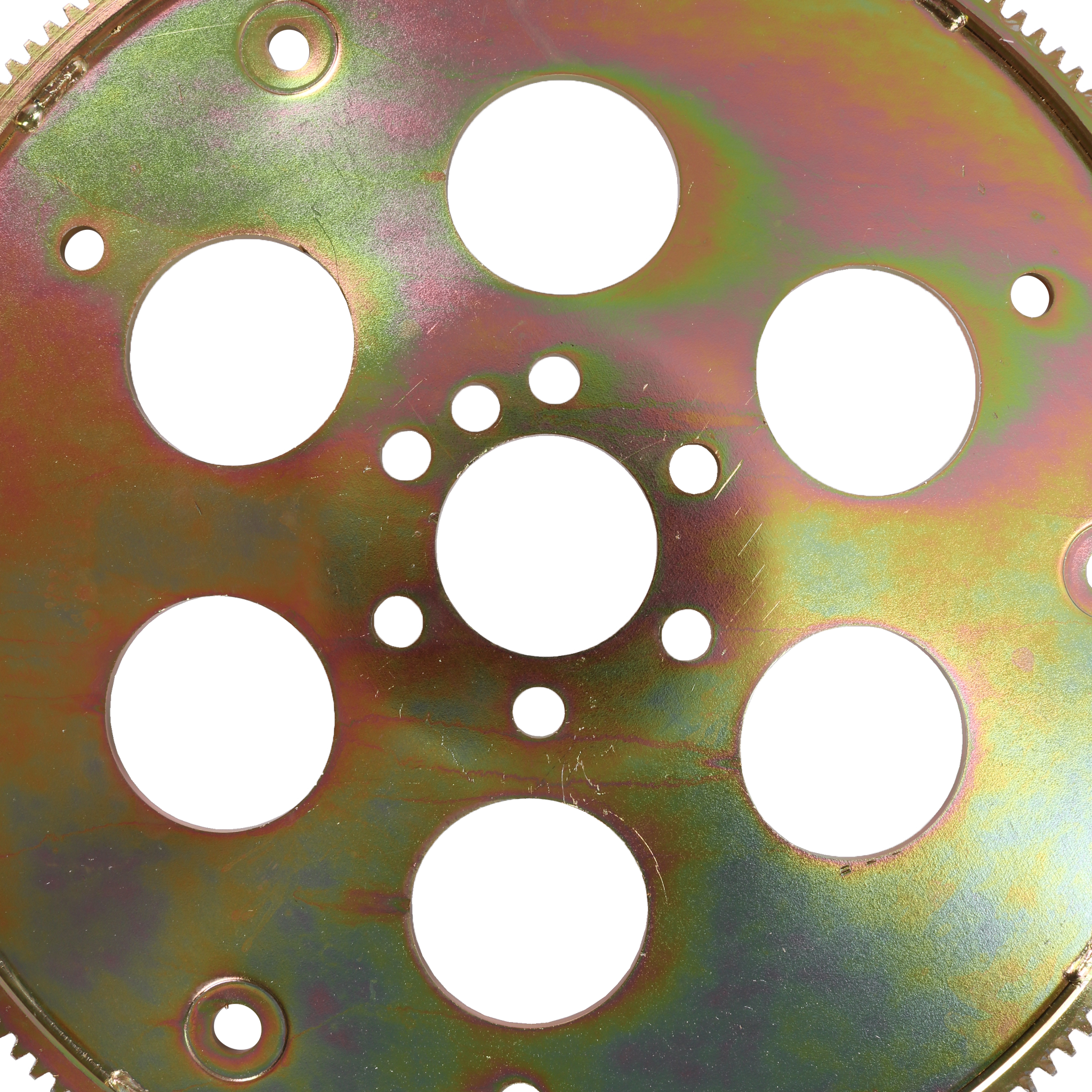

Trans Adapter Flexplate
GM LS Gen II to early GM 3/4 speed automatic
Works with 10.75" & 11.066" (11.1") bolt-pattern torque converters
SFI 29.1 certified

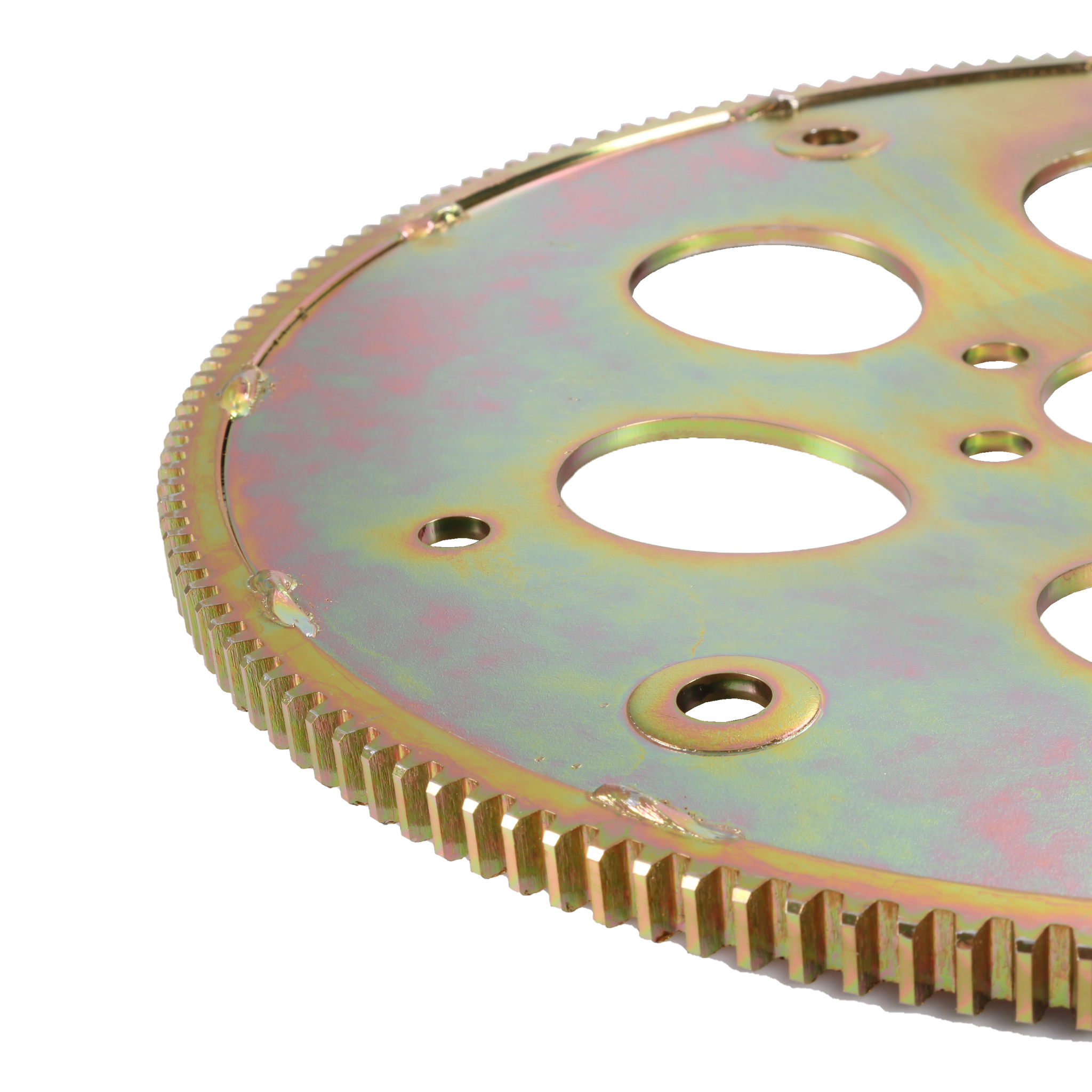

Forged 1-piece steel ring gears
168 tooth
Works with stock LS starter motor

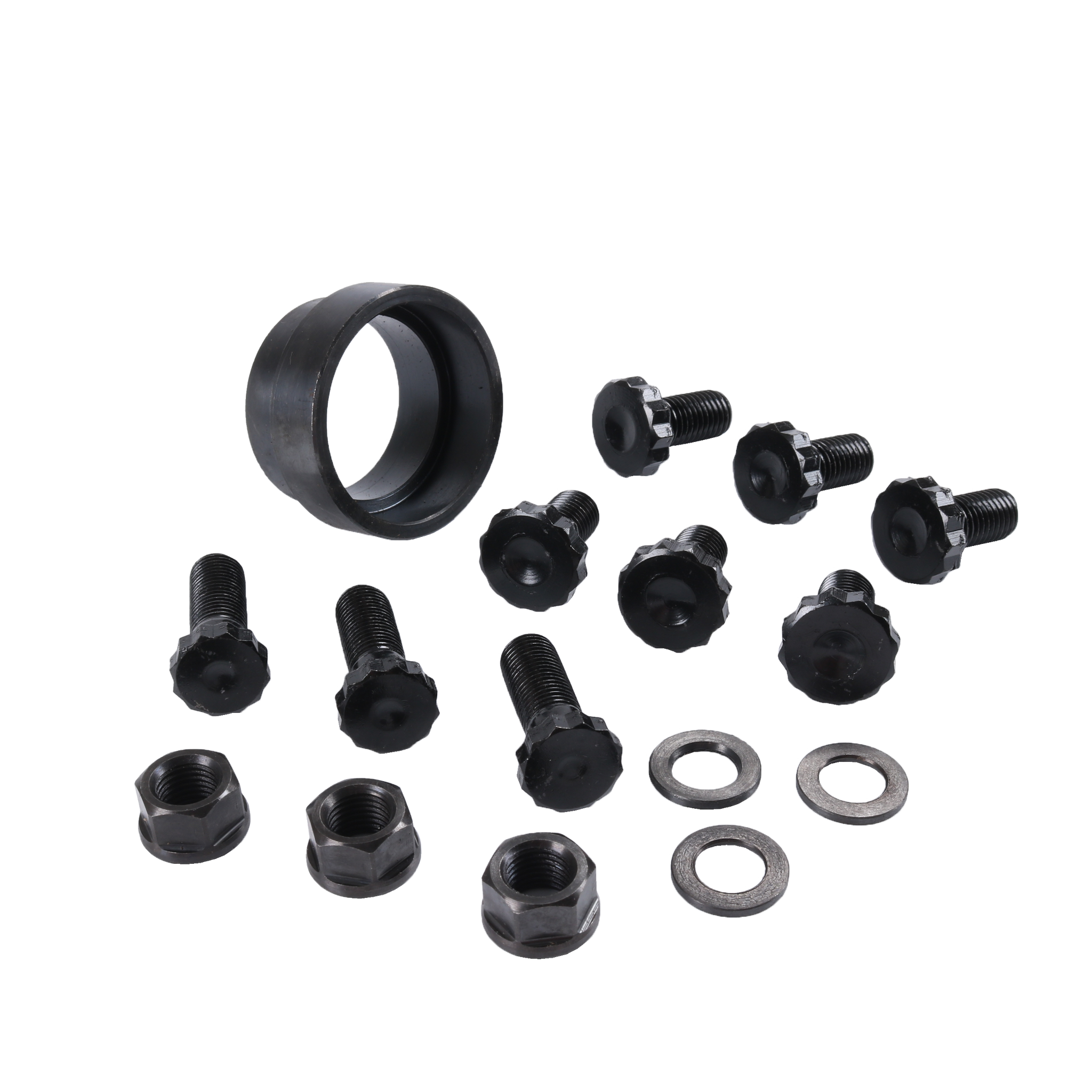

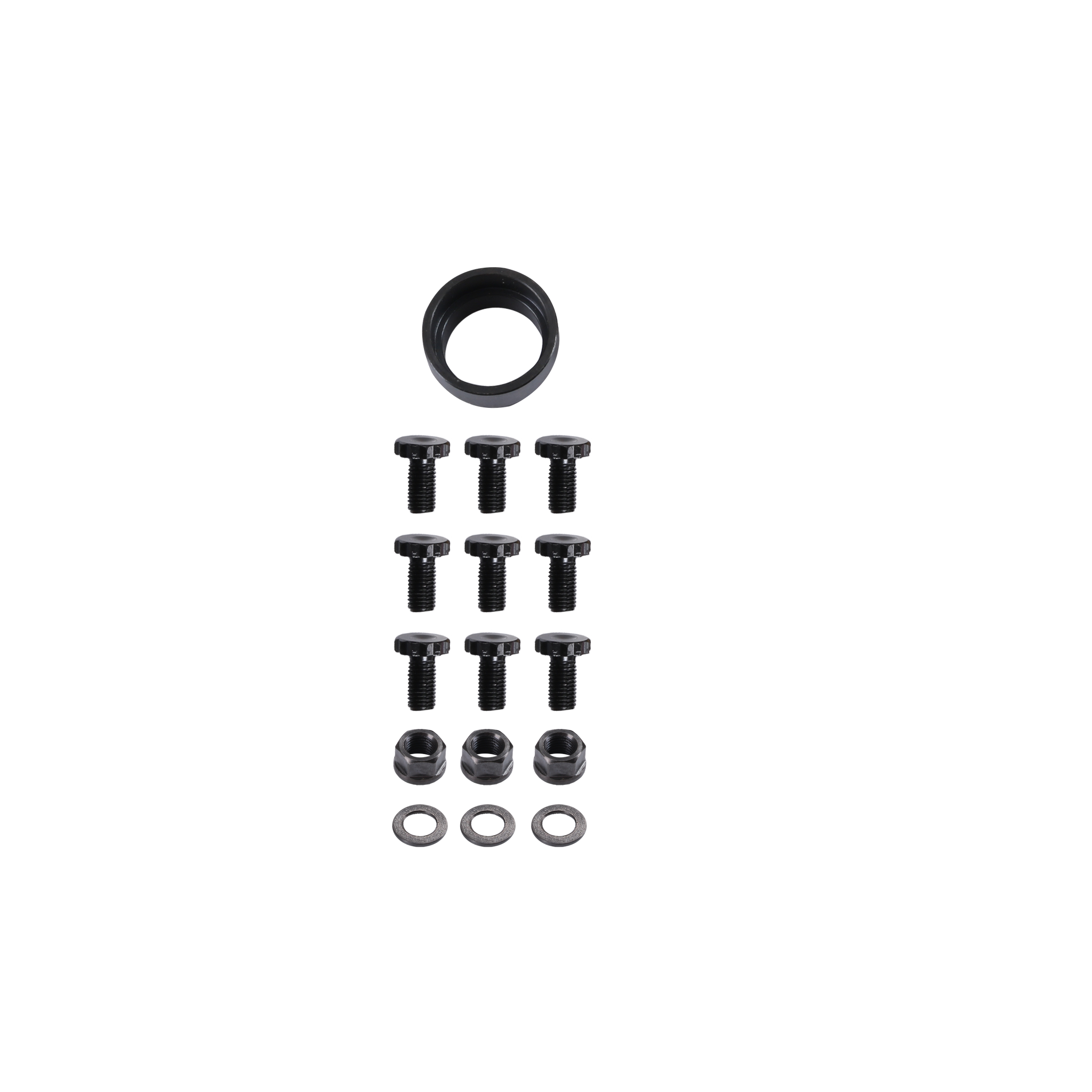

Gen III LS Flexplate Bolts
Fits Chevrolet Gen III/LS Series V8
Exclusive, flat, 12-point head design
Has a 200,000 psi rating
M11 x 1.5
LS Crank Sleeve Adapter
Overall Height: 1.04"
Inside Diameter: 1.47"
Diameter Small End: 1.70"
Diameter Big End: 2.00"
Material Type: Steel
Torque Converter Bolt Kit
Under Head Length: 1.25"
Thread Pitch: 7/16"-20
Wrench Type: 12 Point
GM LS Gen II to early GM 3/4 speed automatic
Works with 10.75" & 11.066" (11.1") bolt-pattern torque converters
SFI 29.1 certified
Forged 1-piece steel ring gears
168 tooth
Works with stock LS starter motor
Gen III LS Flexplate Bolts
Fits Chevrolet Gen III/LS Series V8
Exclusive, flat, 12-point head design
Has a 200,000 psi rating
M11 x 1.5
LS Crank Sleeve Adapter
Overall Height: 1.04"
Inside Diameter: 1.47"
Diameter Small End: 1.70"
Diameter Big End: 2.00"
Material Type: Steel
Torque Converter Bolt Kit
Under Head Length: 1.25"
Thread Pitch: 7/16"-20
Wrench Type: 12 Point
Fitment:
1997-07 GM LS1/LS6 engines (up to '09 for LS2) and 4.8/5.3/6.0 truck engines including L33, L59, LM4, LM7, LQ4, LQ9, and LR4. Adapts all of these engines to TH350, 700R-4, 200-4R, 4L60 and Powerglide transmissions that originally came behind a non-LS engine (such as a SBC or BBC V8)
