JDMSPEED Medium Duty Onboard Air System Air Compressor 12V With 2.5 Gallon Tank

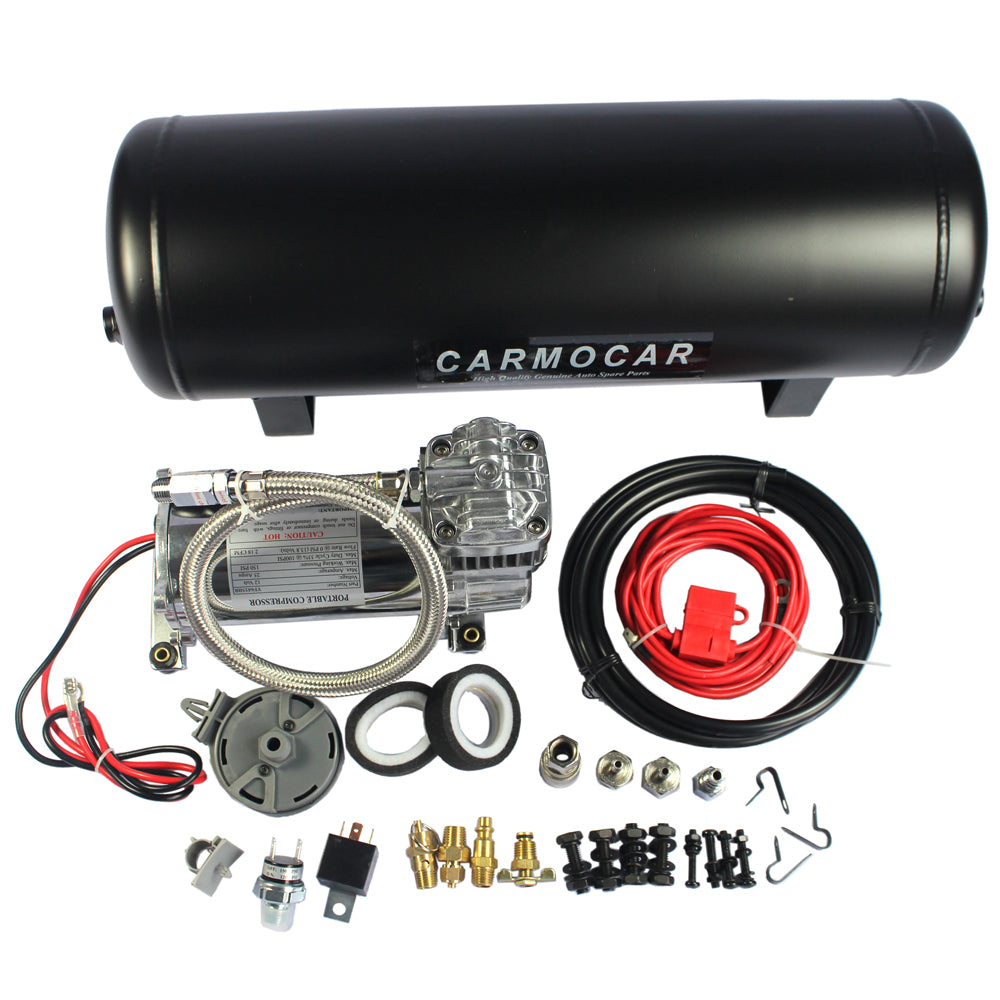

This is medium Duty Onboard Air System with 2.5 gallon air tank, and all components needed to install basic vehicle-based pneumatics.
Parts Included
One Air compressor
12 Volt
Duty cycle: 33%@100 PSI
System Max Working pressure : 150 PSI
Max Amp Draw: 25 Amps
2.5 Gallon Air tank
Accessory Airline
Pressure Switch(120PSI ON 150 PSI OFF)
40 Amp Relay

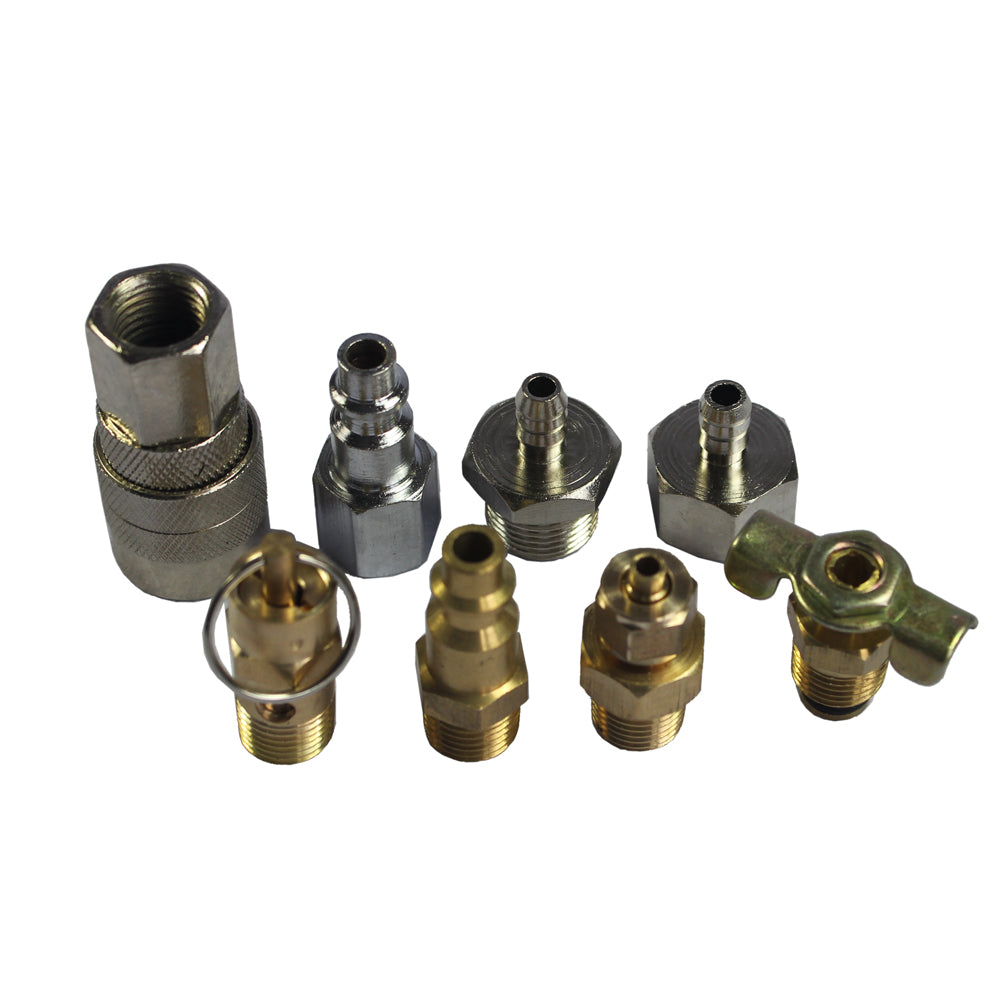

1/4'' NPT Drain cock
1/4'' NPT quick Connect Stud(F)
1/4'' NPT quick connect Coupler(M)
1/4'' NPT 145 PSI Safety Valve
8ft Air Hose
20ft 12 Gauge wire with inline fuse holder
Electrical Connections
Tank Fill data
2.5 Gallon tank
0 to 150 PSI 2 MIN 12 SEC
120 to 150 PSI 48 SEC
