JDMSPEED New 300LPH Universal External Inline Fuel Pump Replaces for Bosch 0580254044

E006-EFP-0580254044

  • $30.96
    Unit price per
Shipping calculated at checkout.

Only 118 left!

300LPH Universal External Inline Fuel Pump Replacing 044 for Bosch 0580254044

Free Shipping To USA
One year warranty

This is a brand new, high quality direct fit OE style replacement Fuel Pump.

Part#  0580254044


These brand new and high performance pumps deliver flow about 300lph at 12v and 45psi  matching maximum 750hp naturally aspirated engines and 650hp turbo/Supercharged ones separately.The Flow rate is same as Bosch 044 pumps.It's used widely in many different types of motorsport; World Rally Cars, Touring Cars. The pictures show the exact item including kits for sale.Meanwhile customers will get 2 years warranty after receiving the goods.

Features:

  • Munt in rear center of  the car or truck.
    ·  Can  be installed along with a high performance walbro intank fuel pump or alone
    ·   Positive terminal is M6, ground terminal is M5

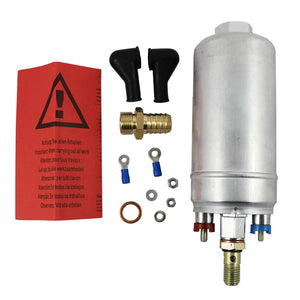

    ·  Eexternal Fuel Pump x 1
    ·  Internal Fuel Filter (already fitted) x 1
    ·  Rubber connection covers x 2
    ·  Clips x 2
    ·  Nuts x 2
    ·  Washers x 2
    ·  Inlet Adapter x 1 included


Technical Data

· Operating Voltage:12V

  • Min Voltage:8V
  • Max Voltage:18V
    ·Operating Pressure:75PSI(5.0Bar)
  • PRV Activation(0-130PSI)
  • Fow Rate: 200 LPH(53 GPH) under 75PSI(5.0 Bar) & 12V
    ·Flow rate: 300 LPH(80 GPH) under 43 PSI(3.0 bar) &12V
  • Flow rate: 300LPH(80 GPH) under 75PSI(5.0Bab) & 13.5V
  • Current:15A under 75PSI/12V
    · High Temperature Reduction: 30 LPH(8 GPH)
    · Operating temperature range: -20 ℃ - 90 ℃(-68 °F-194 °F)
    · Storage temperature range: -40 ℃- 70 ℃ (-104°F-158 °F)
    · Recommended Horsepower Capabilities: up to 750HP for Naturally Aspirated engines & 650HP for Turbo/Supercharged engines
     Dimension
    · Length : 196mm
    · Diameter : 60mm
    · Inlet : M18x1.5 Metric Thread
    · Outlet : M12x1.75 Metric Thread
    · Weight:1,090 g



Application

· Universal - Fits All Vehicles
