JDMSPEED New Chrome 12V 24V Train Truck Air Horn Electric Solenoid Valve Heavy Duty 1/4"
| Superseded Part Number | Horn Solenoid Valve |
|---|---|
| Country/Region of Manufacture | China |
| Interchange Part Number | Air Horn Valve |
| Material | Aluminum |
| Horn Type | Direct Air |
| Type | Horn |
| OE Spec or Performance/Custom | Performance/Custom |
| Color | White |
| Surface Finish | Chrome |
| Manufacturer Part Number | Z035-HV-1224V |
| Placement on Vehicle | Left,Right,Front,Rear,Upper,Lower |
| Other Part Number | Horn Solenoid Valve |
| Brand | JDMSPEED |
| Fitment Type | Performance/Custom |
| Non-Domestic Product | No |
| Warranty | 1 Year |
| Mounting Hardware Included | Yes |
FREE SHIPPING IN THE USA
ONE YEAR WARRANTY

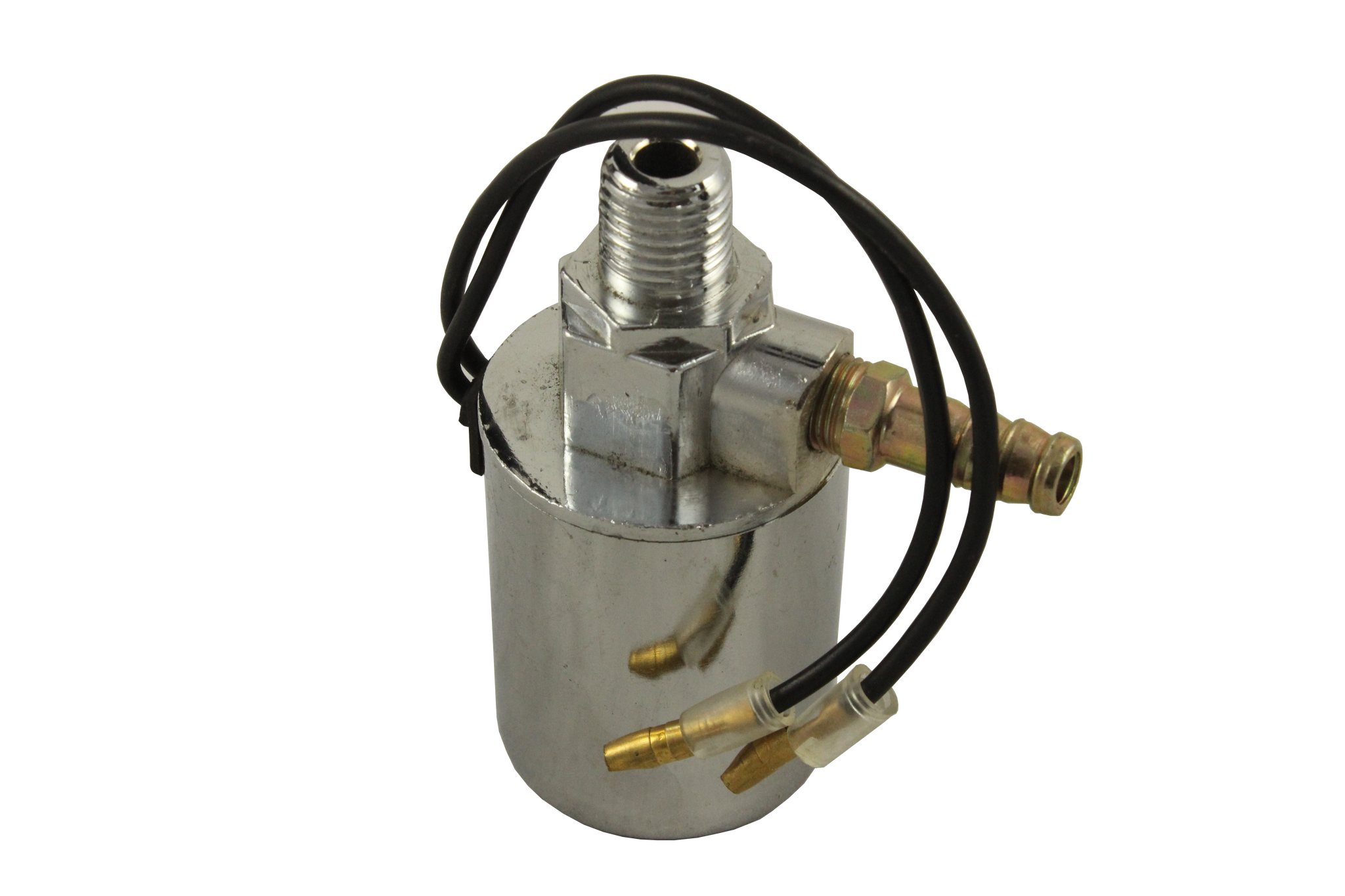

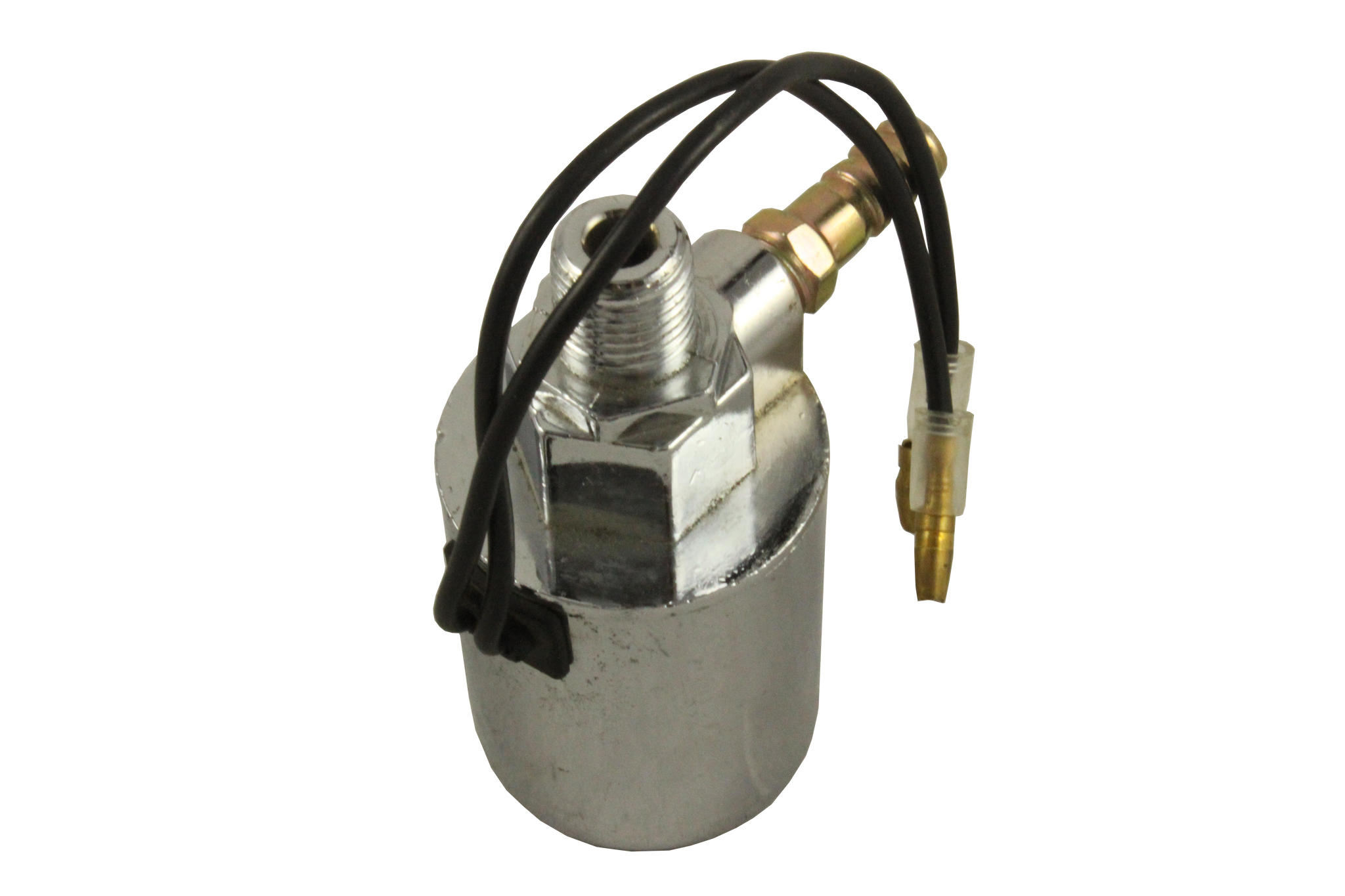

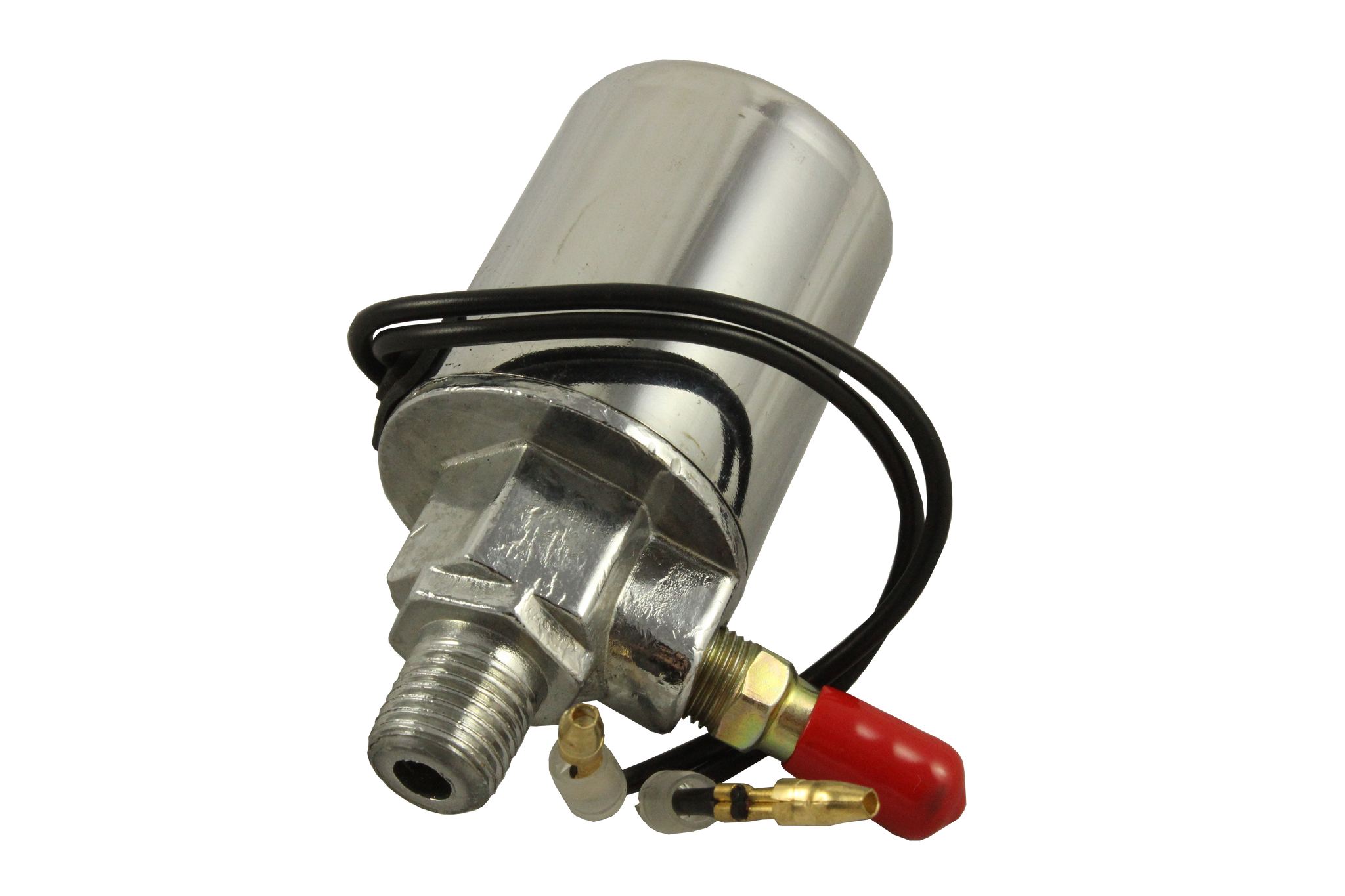

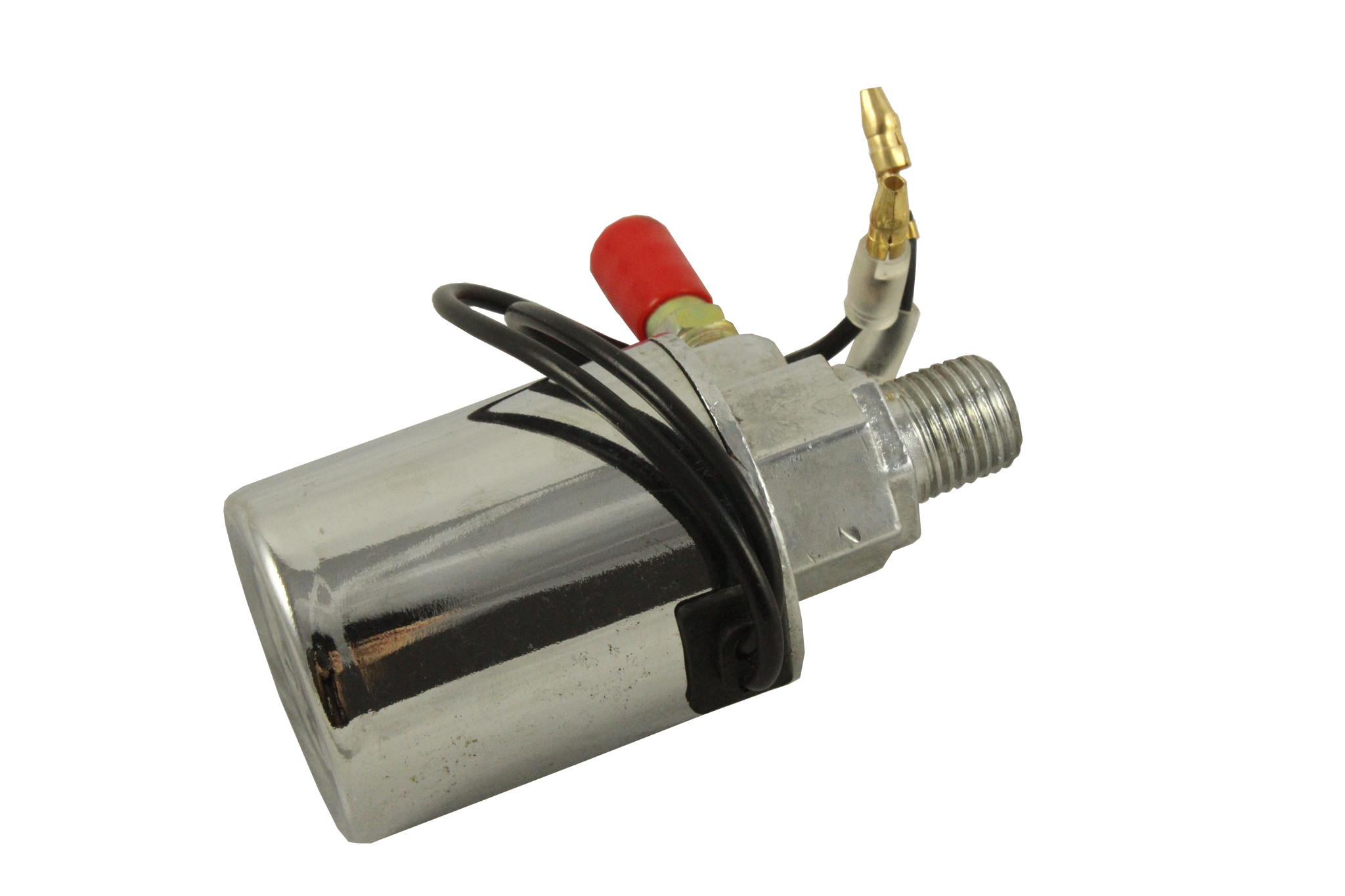

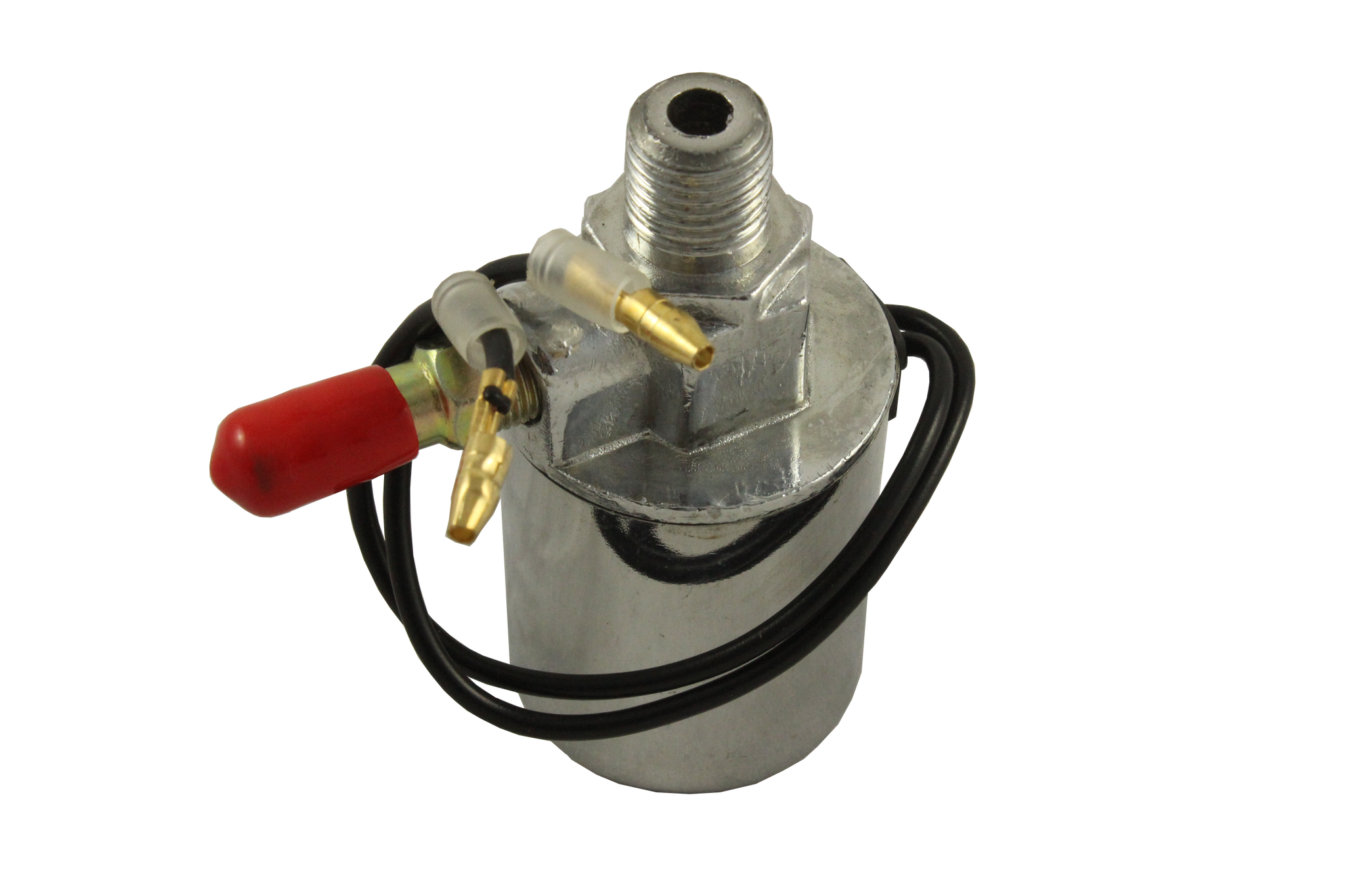

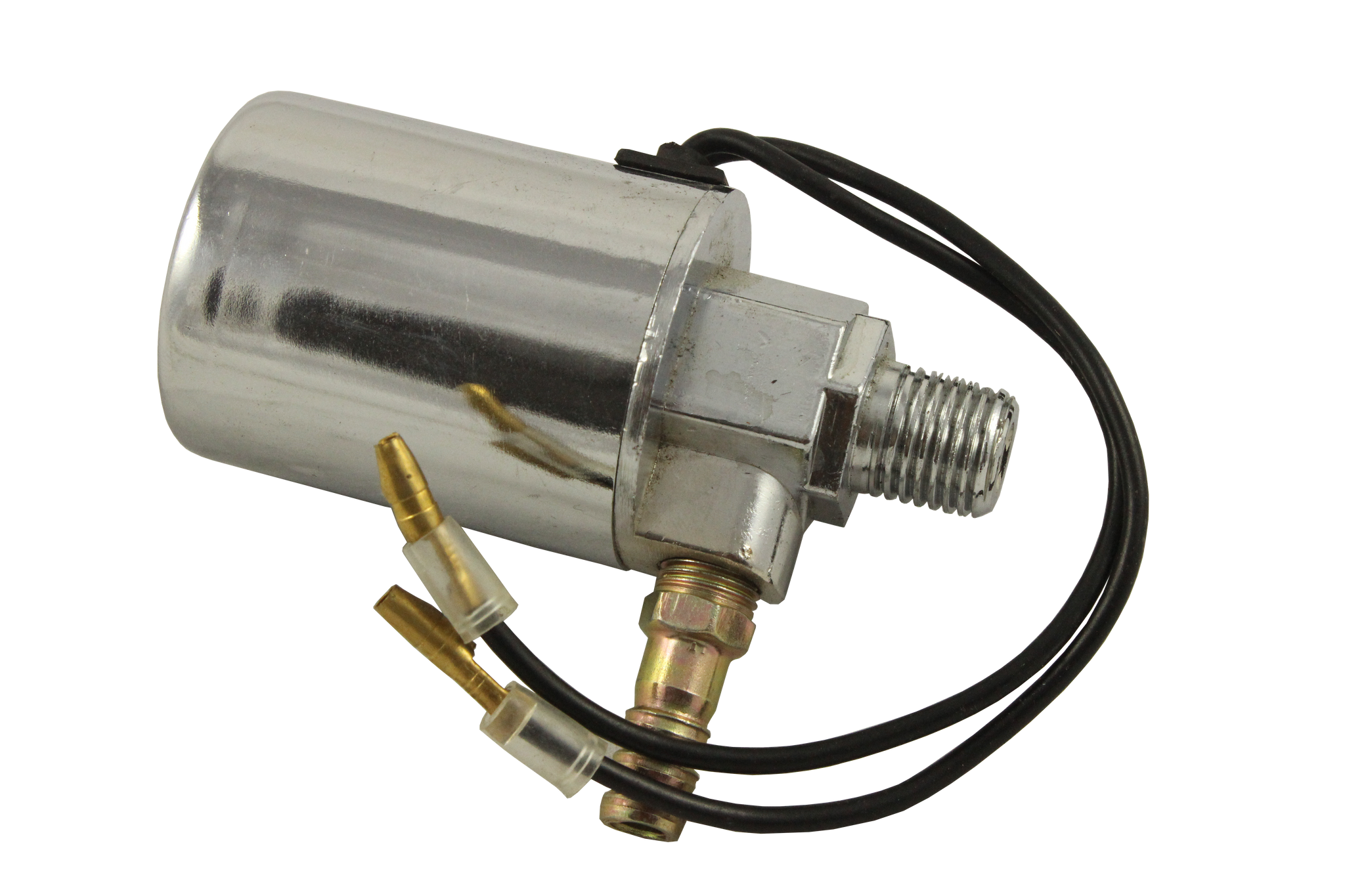

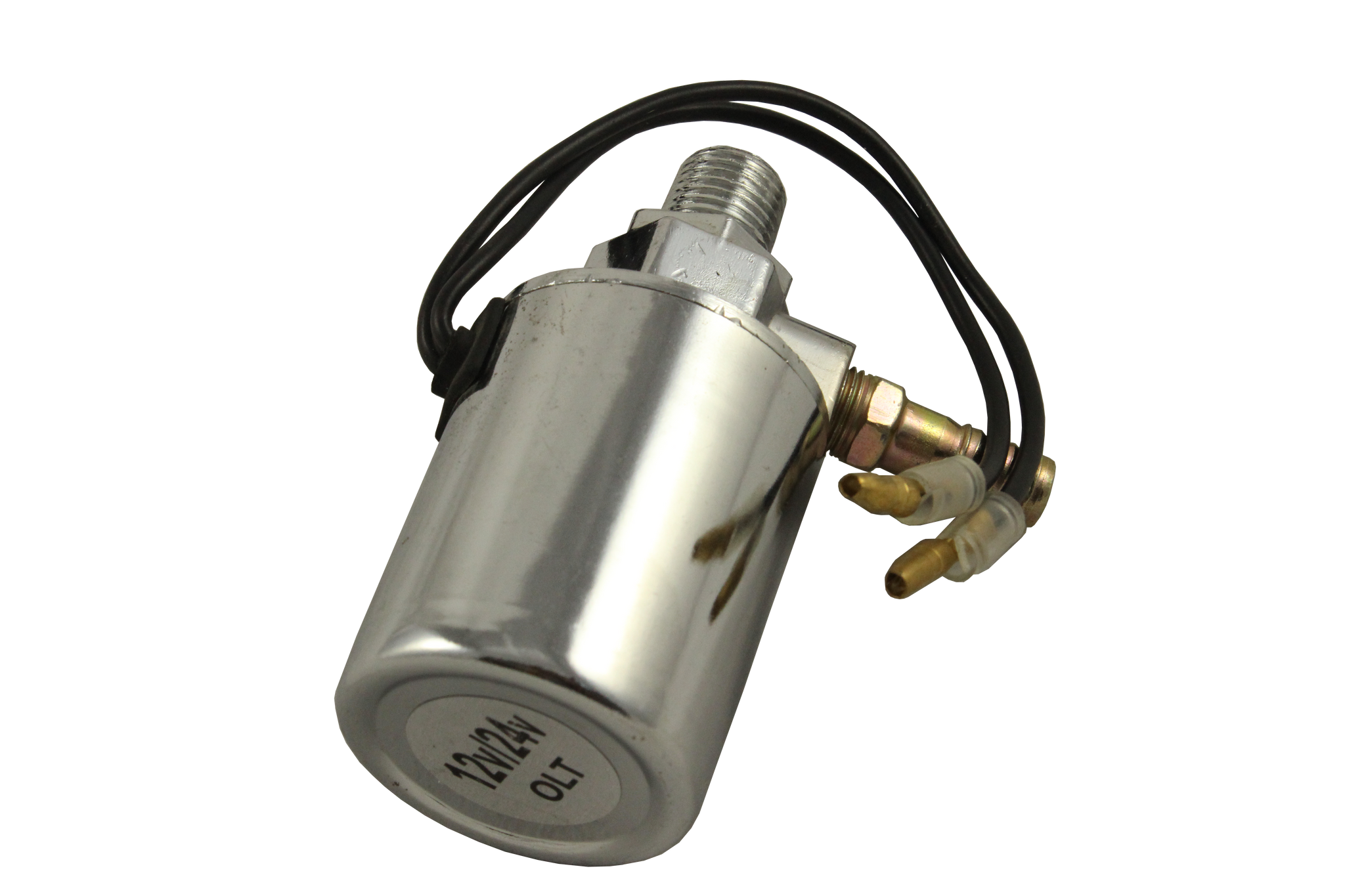

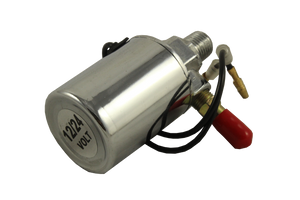

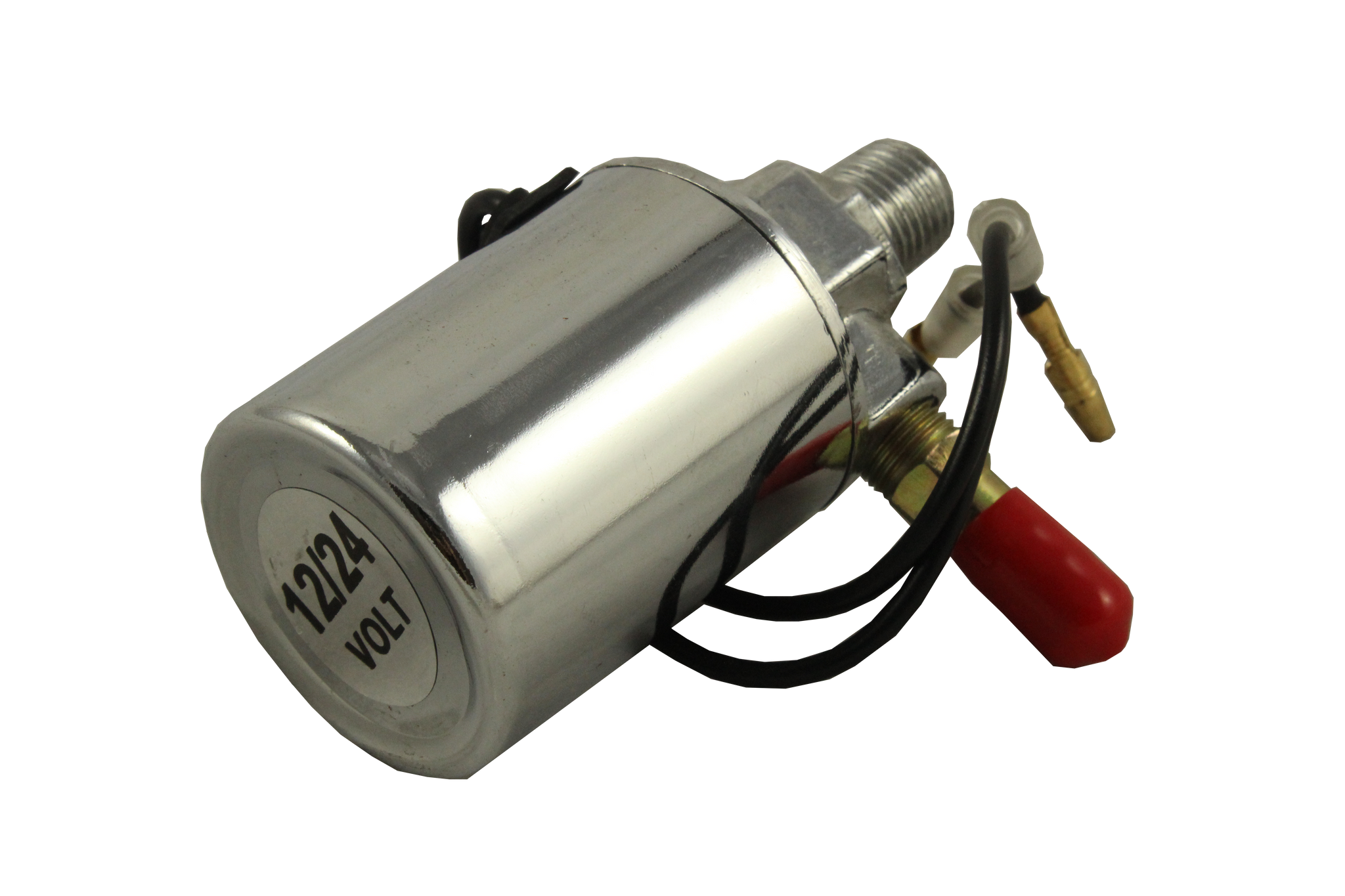

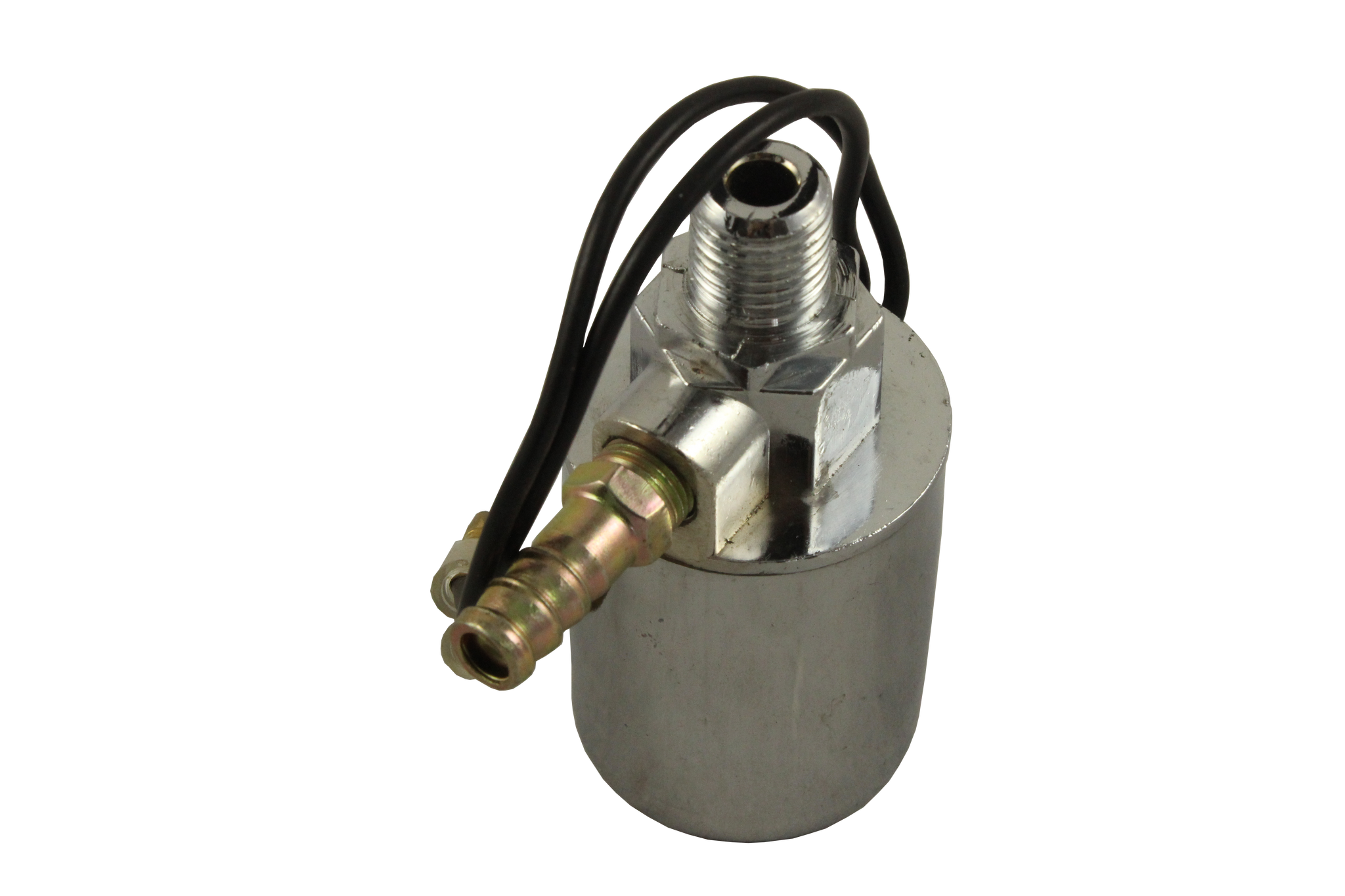

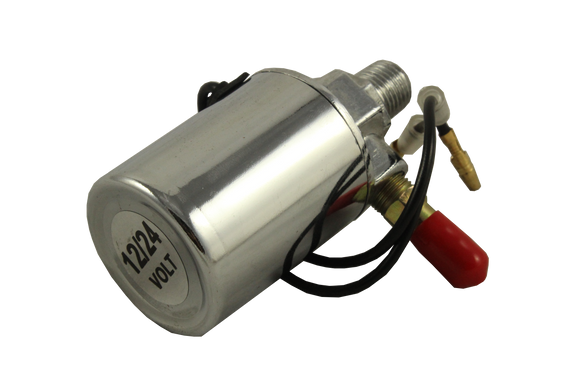

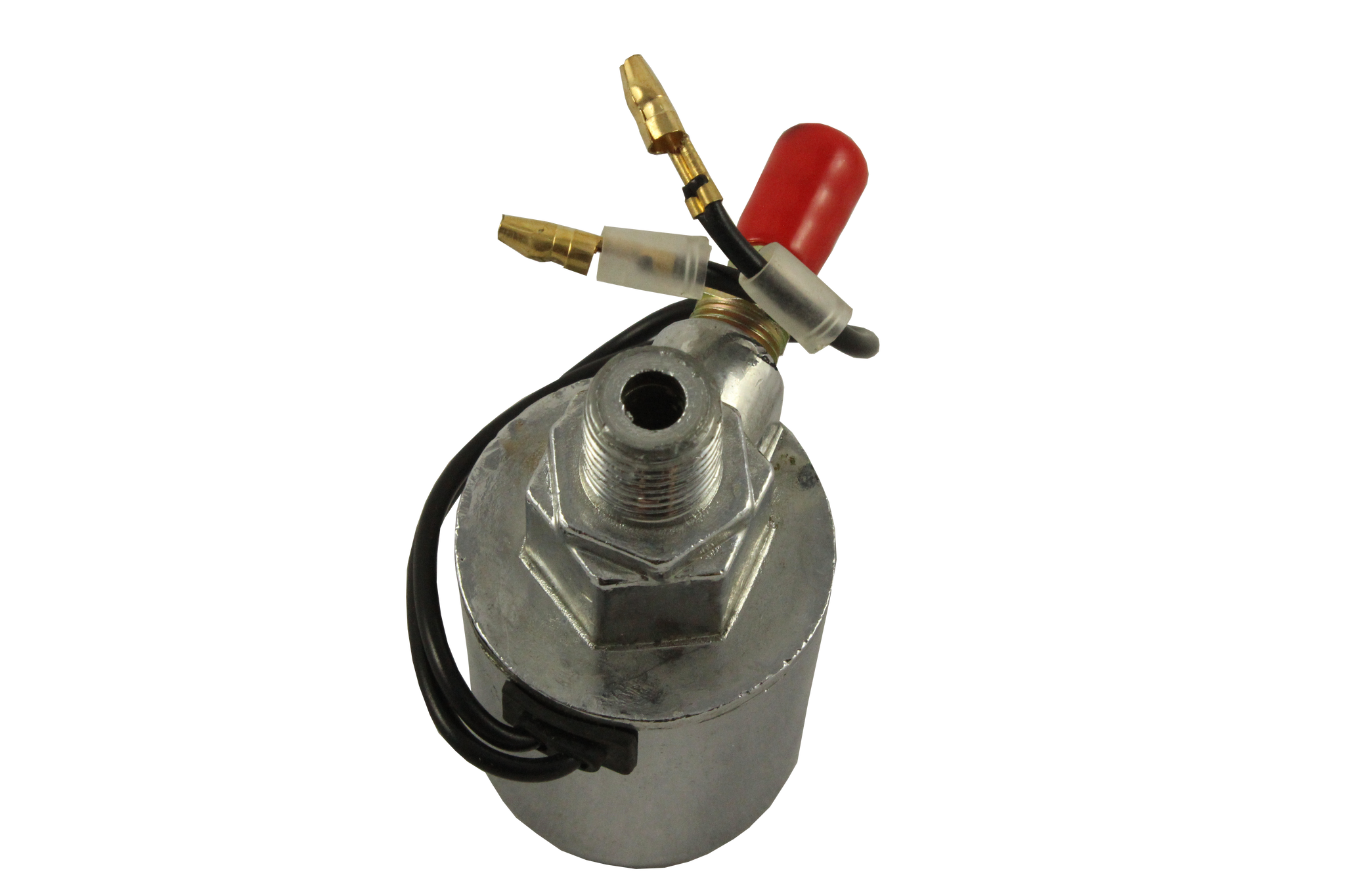

This electric solenoid (air valve) is used with air horns, for both 12 volt and 24 volt vehicles. When the vehicle's horn button is depressed, the solenoid becomes electrically energized, opening its chamber and permitting air to reach the horn. The solenoid remains engaged as long as the horn button is depressed. Max 150 PSI. Threaded air outlet screws in to any horn that has a 1/4" female thread, and the compression air inlet side will accommodate a 1/8" outer diameter hose.
Construction: chrome plated all metal housingOutput fitting: 1/4" NPT-MALE
Input fitting: compression fitting to fit 1/8" NPT-MALE
Max air pressure: 150 PSI
Power source: both for 12 volt & 24 volt DC
