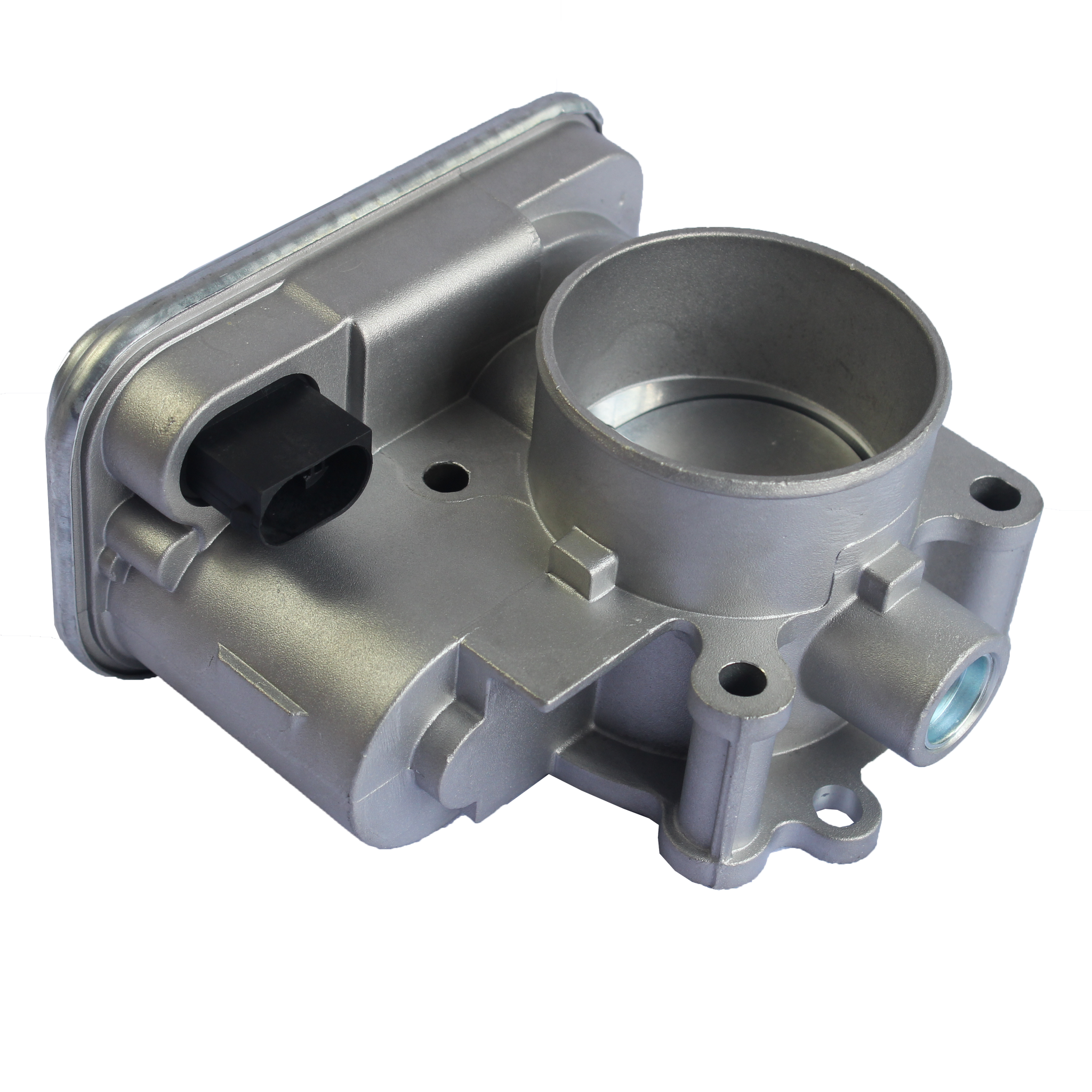

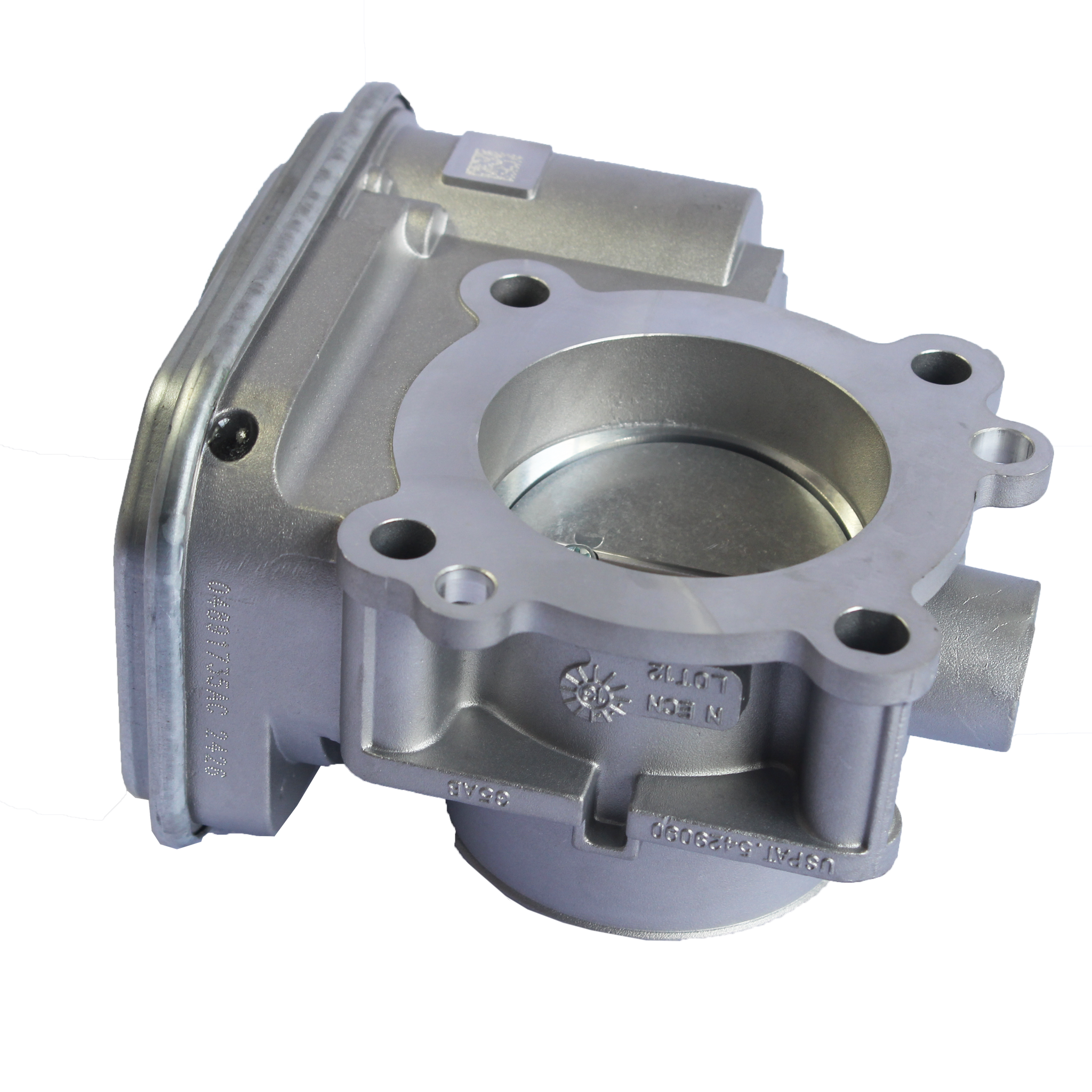

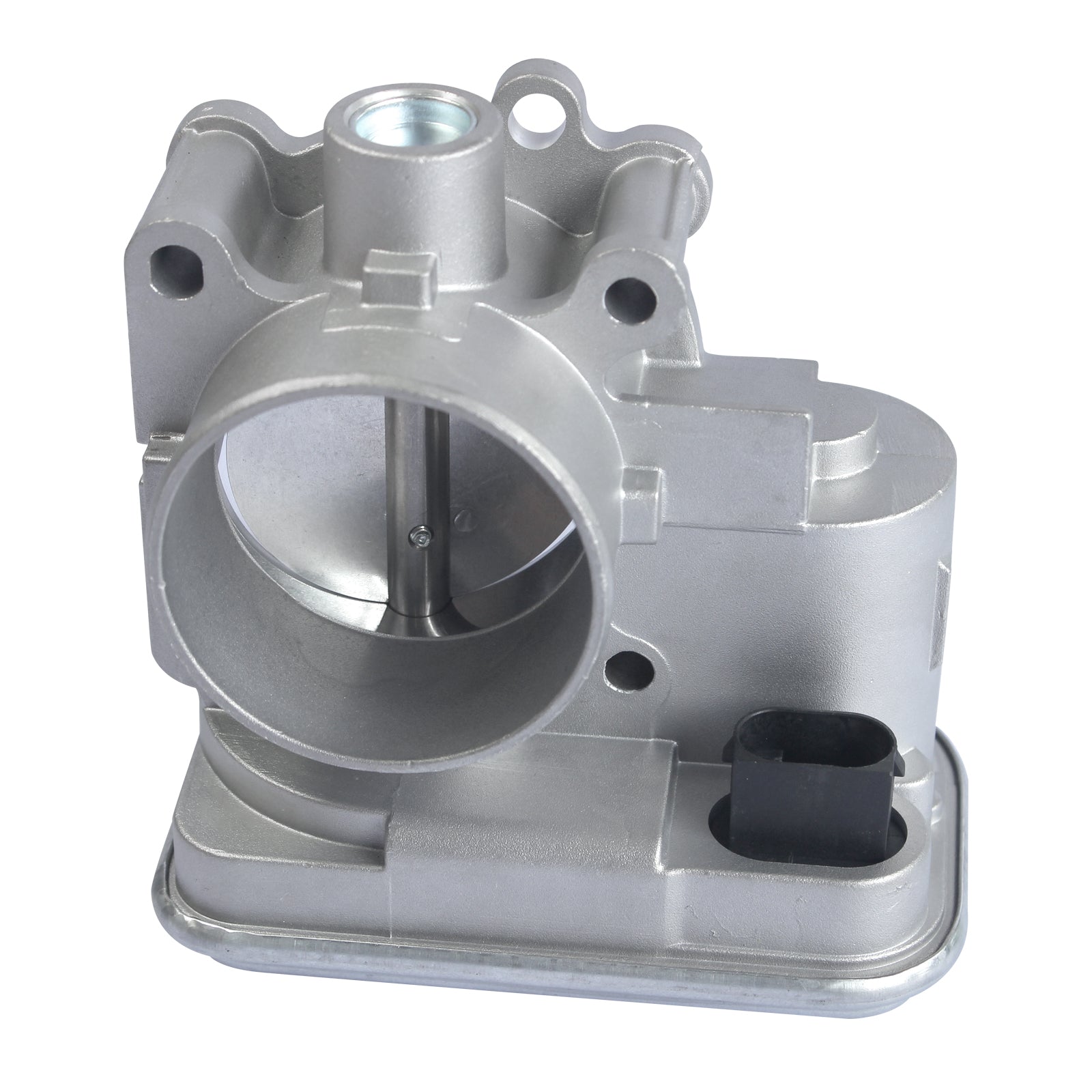

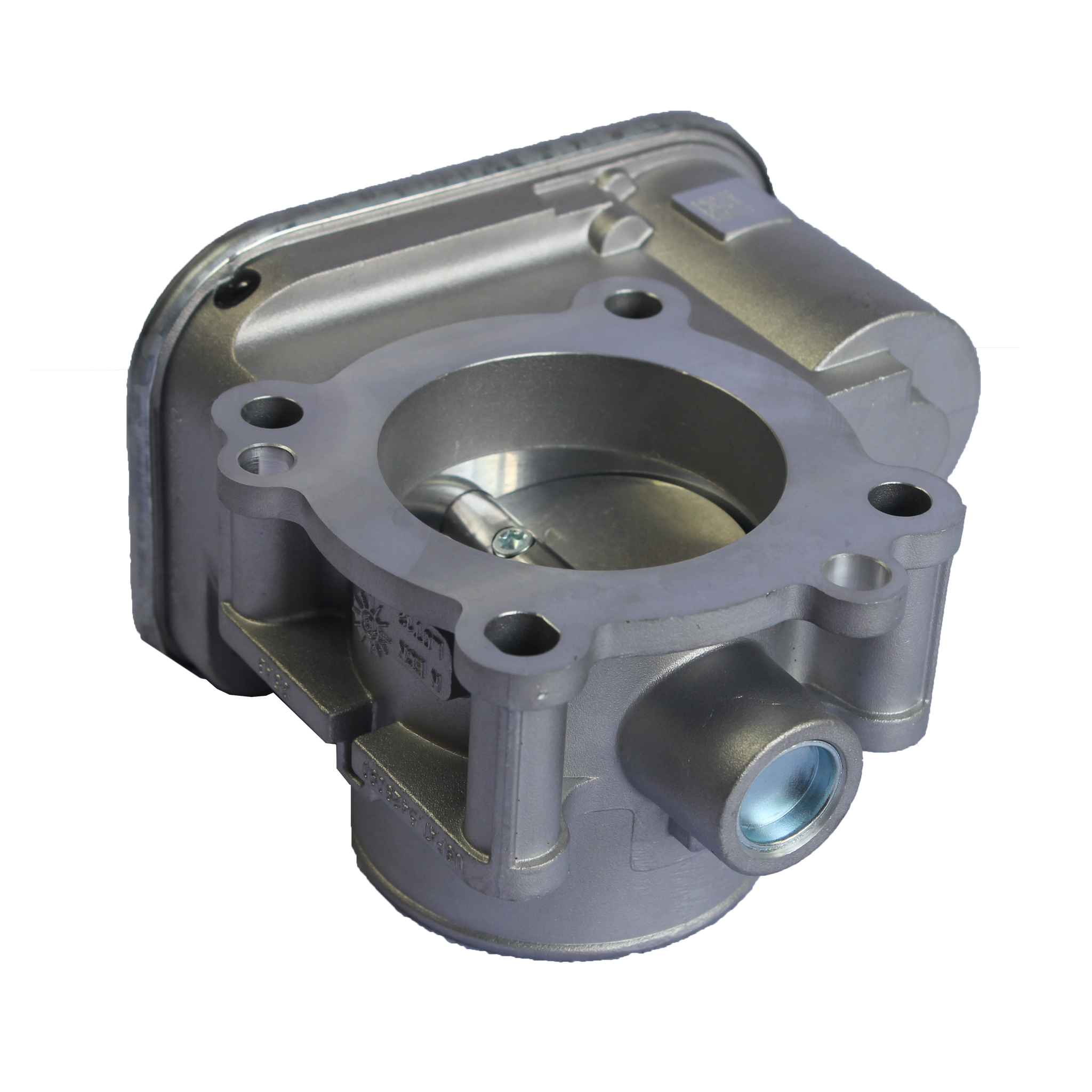

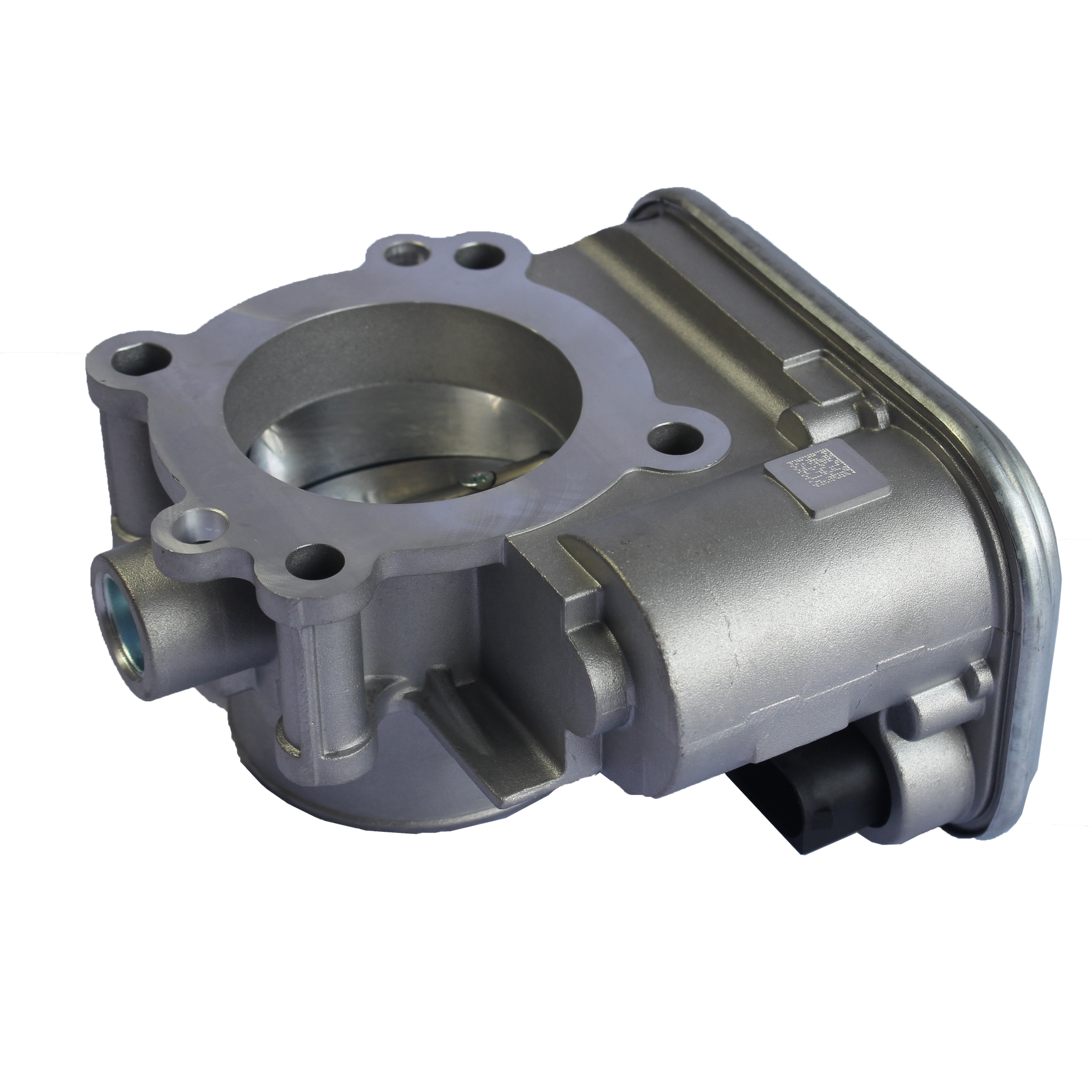

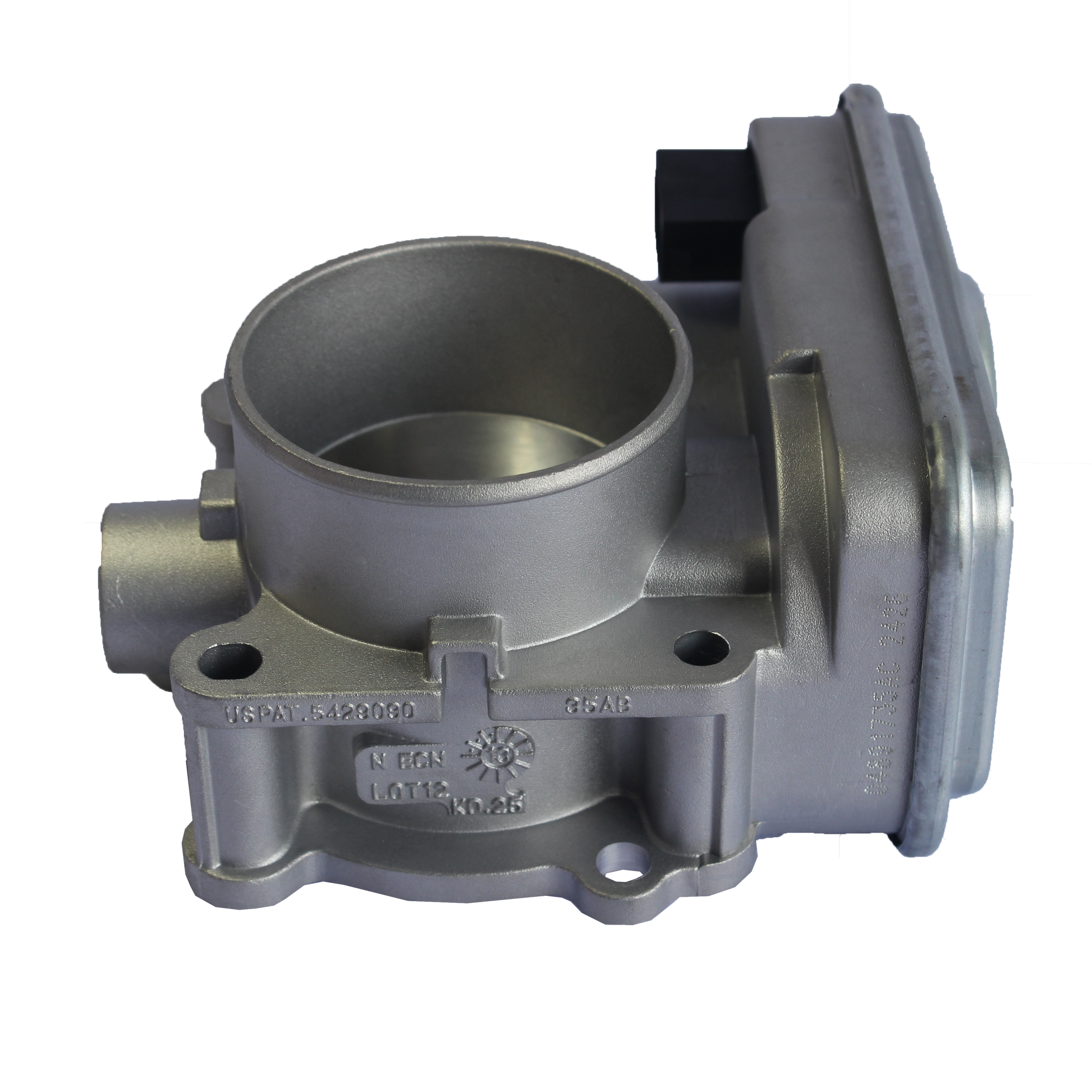

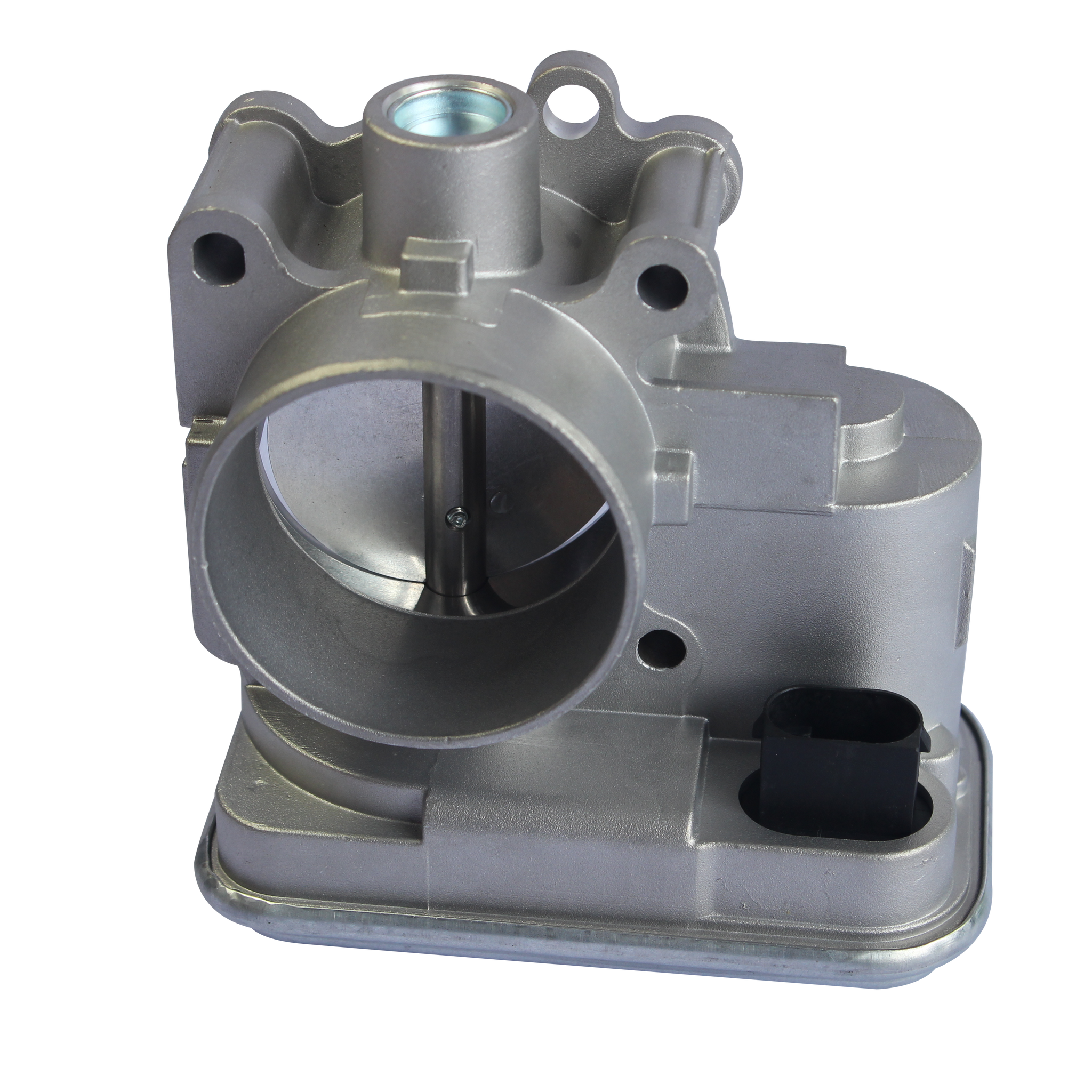

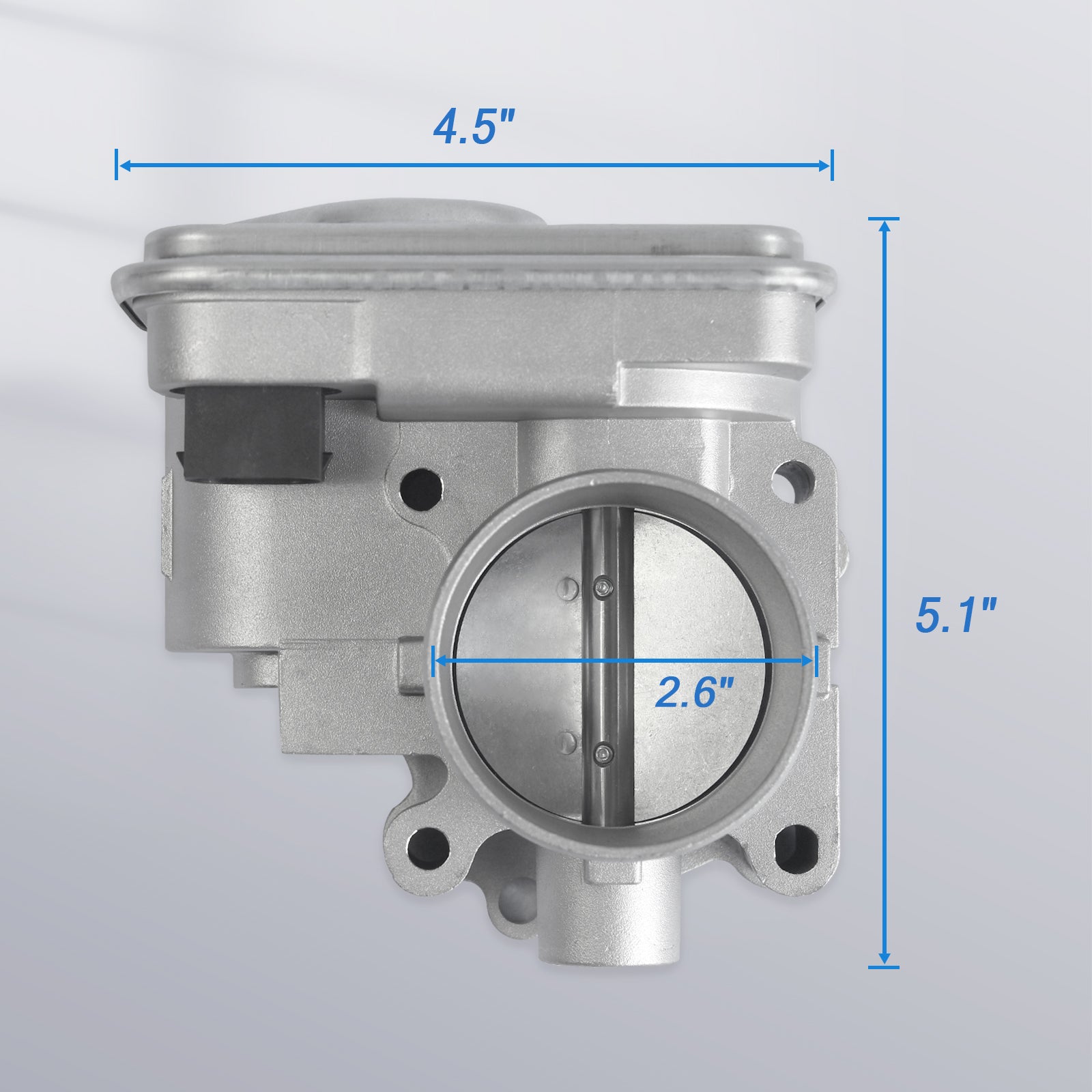

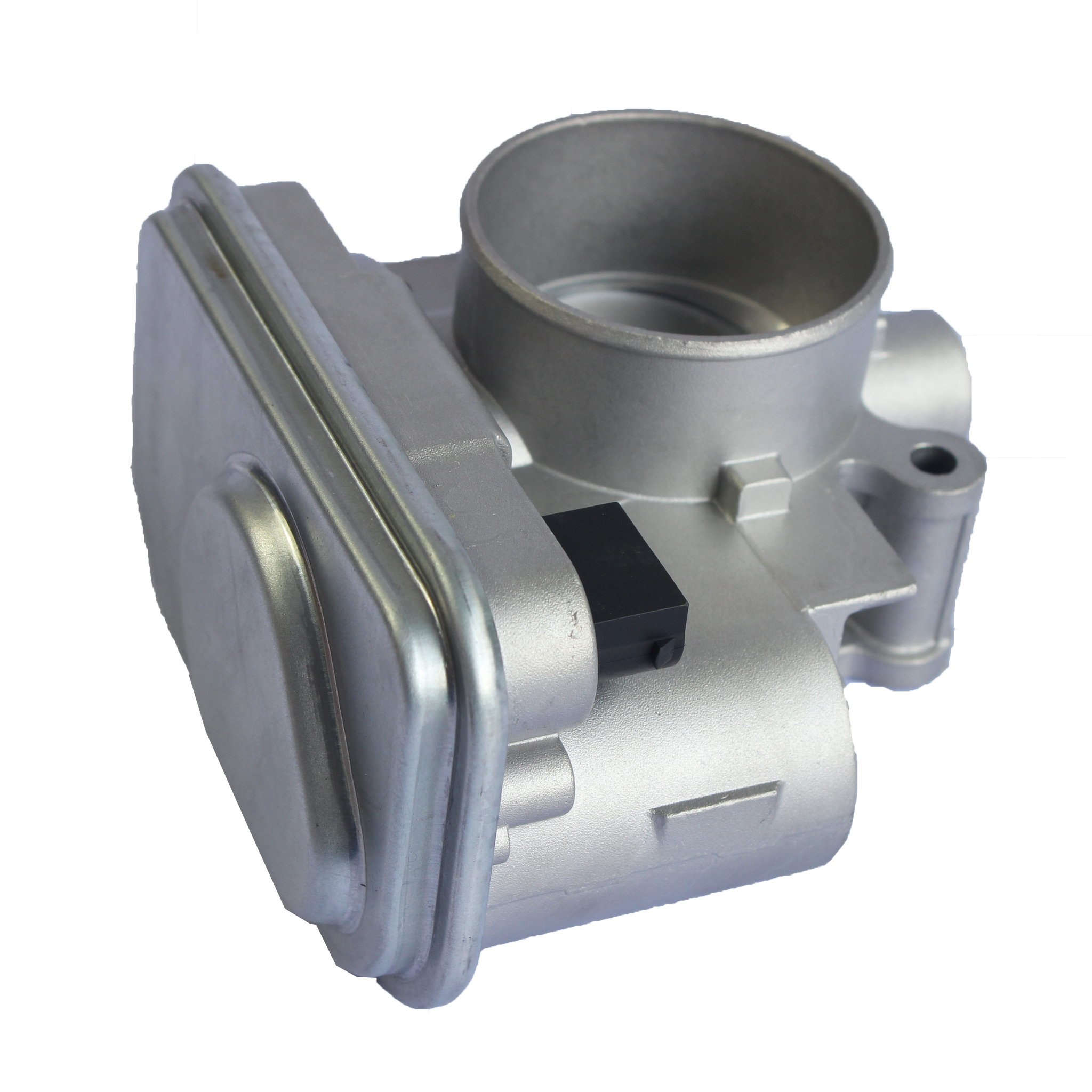

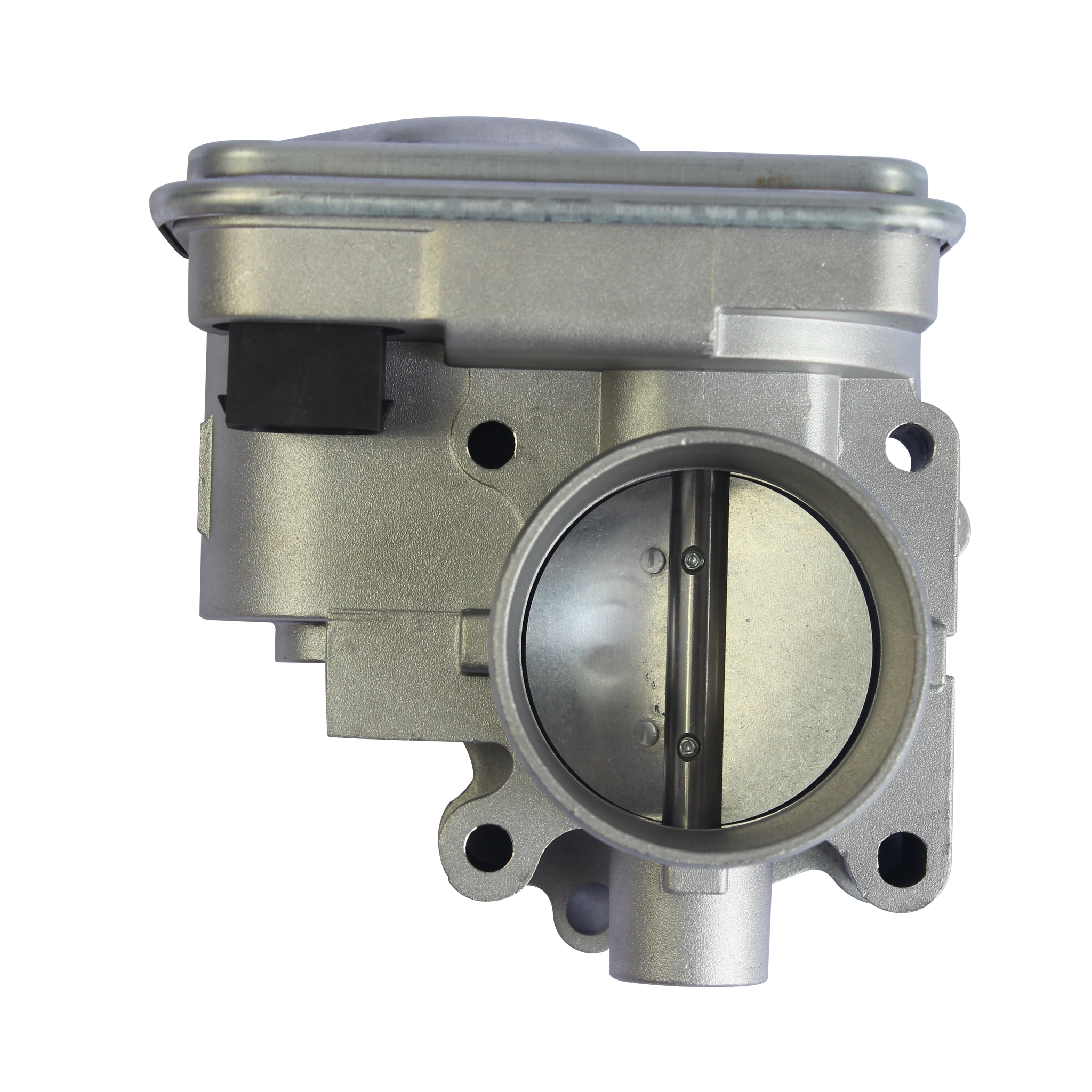

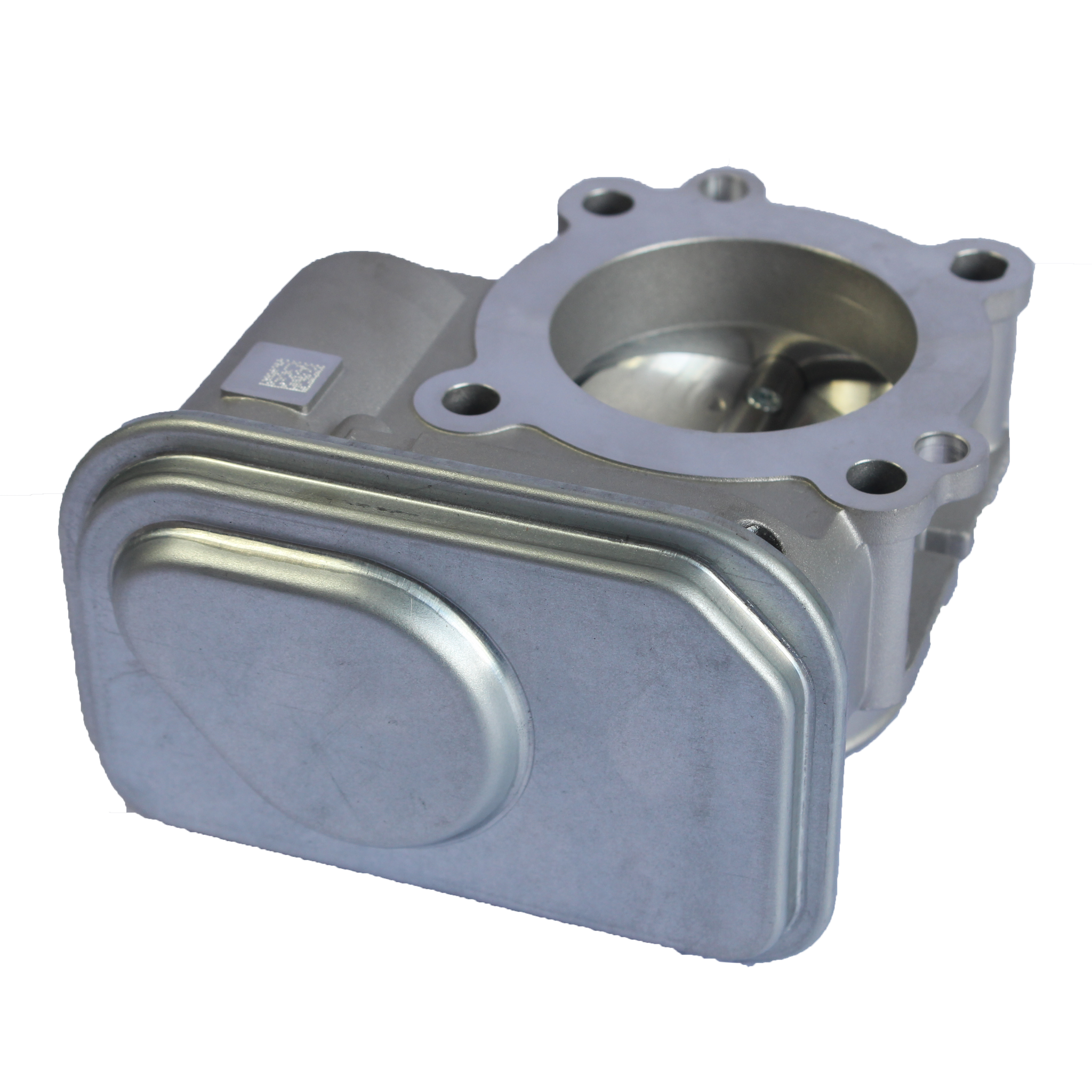

JDMSPEED Throttle Body For Jeep Compass Chrysler 200 Dodge Caliber 1.8L 2.0L 04891735AC
FREE SHIPPING IN THE USA
ONE YEAR WARRANTY
Features:
100% brand new and high quality Throttle body Chrysler Jeep Dodge 200 1.8l 2.0l 2.4l compass caliber

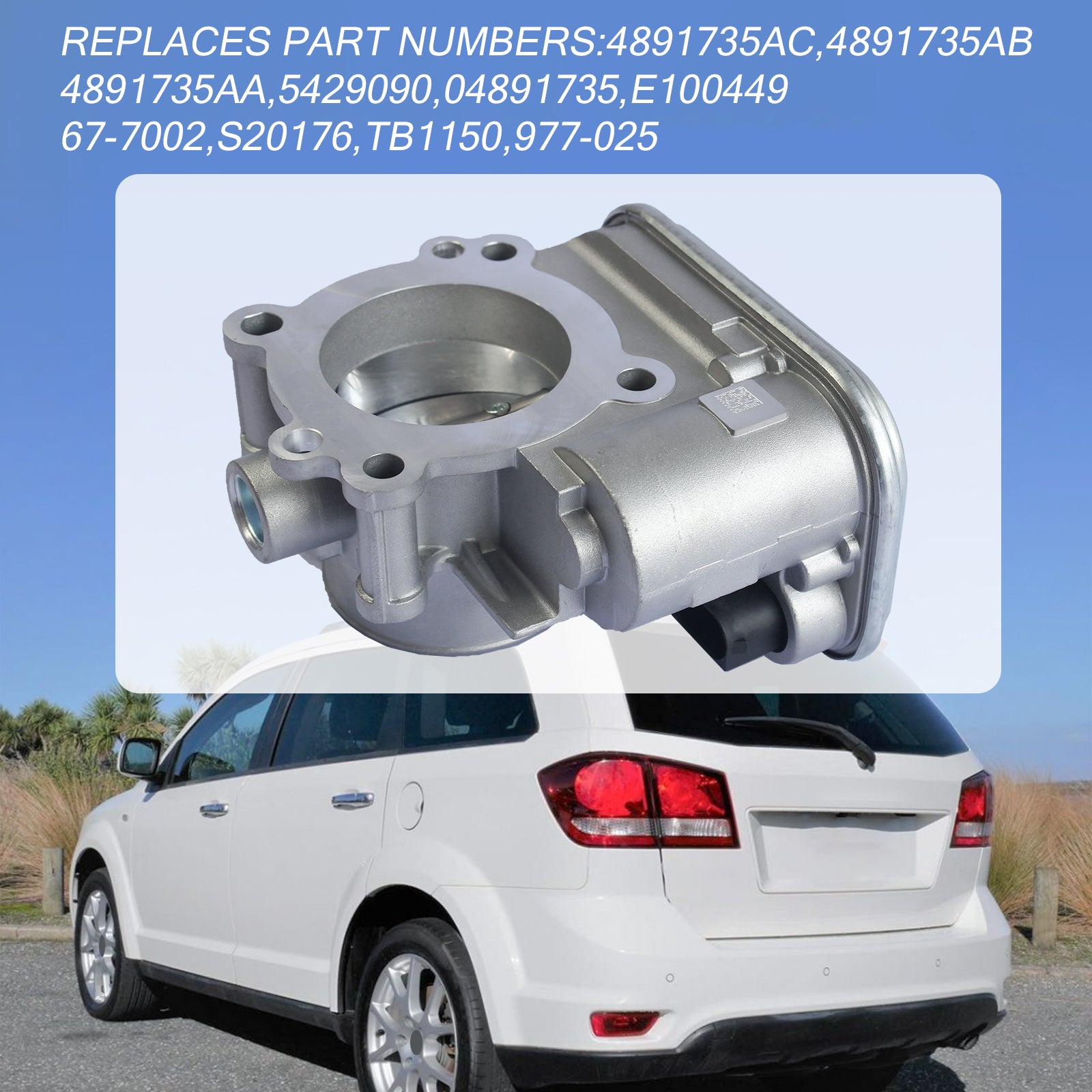

Part number: 04891735AC, 4891735AB, 4891735AA, 4891735
Replace for OEM number: #04891735AC + #4884551AA

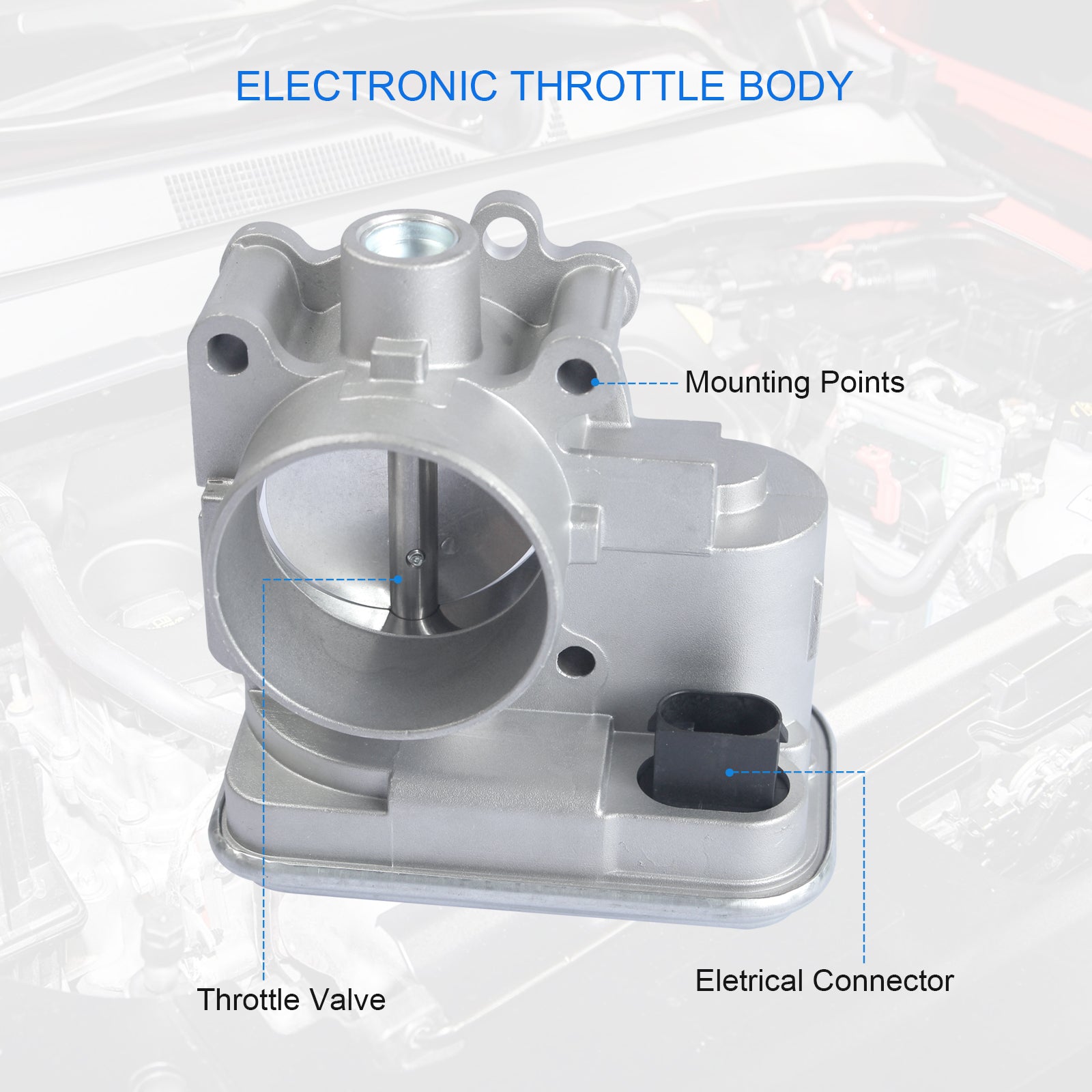

The electronic throttle unit opens and closes the throttle blade based on input from various engine control sensors, including the accelerator pedal
Quality: ROHS; ISO/TS16949; ISO9001:2008
Quality & Fitment tested
2007-2016 JEEP PATRIOT WITH 1.8L 2.0L 2.4L
2007-2016 JEEP COMPASS WITH 1.8L 2.0L 2.4L
2007-2012 DODGE CALIBER WITH 1.8L 2.0L 2.4L
2008-2014 DODGE AVENGER WITH 1.8L 2.0L 2.4L
2009-2016 DODGE JOURNEY WITH 1.8L 2.0L 2.4L
2011-2016 CHRYSLER 200 WITH 1.8L 2.0L 2.4L
For exact years and models, please check compatibilities
1 x Throttle body
Hardware as shown in the picture above
1. Common screwdriver
2. Set of ¼-inch sockets
3. ¼-inch ratchet
4. Needle nose pliers
Step 1:
Remove the air cleaner and duct hose assembly using the common screwdriver. Disconnect the electrical connector on the mass air flow by pulling out the plug. Disconnect the intake air temperature sensor found in the air duct.
Step 2: Disconnect the idle air control on the side of the throttle body by pulling the electrical connector out. Disconnect the throttle position sensor opposite the throttle cable levers.
Step 3: Disconnect the throttle cables by turning the throttle lever on the throttle body all the way open by hand and then removing the now slackened cables from the throttle lever.
Step 4: Remove the heated water hoses from the bottom of the throttle body if there are any (this is vehicle dependent). Use the needle nose pliers to remove the clamps by squeezing the clamps and pulling them off. Pull the hoses off. Not all vehicles have these, although there are a few that do.
Step 5: Remove the four bolts running through the throttle body and into the intake manifold. Use appropriate ¼-inch drive socket and ratchet. Lift the throttle body off the intake manifold. Protect the metal gasket that is in between the throttle body and intake. This gasket must be reused. Install the new throttle body and components in reverse order of removal.
