JDMSPEED Universal 12V 300LPH External Inline Fuel Pump Replacing For 0580254044
FREE SHIPPING IN THE USA
ONE YEAR WARRANTY

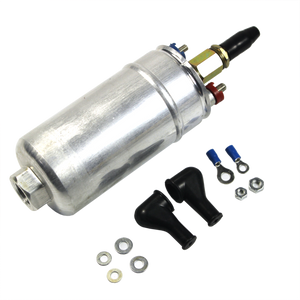

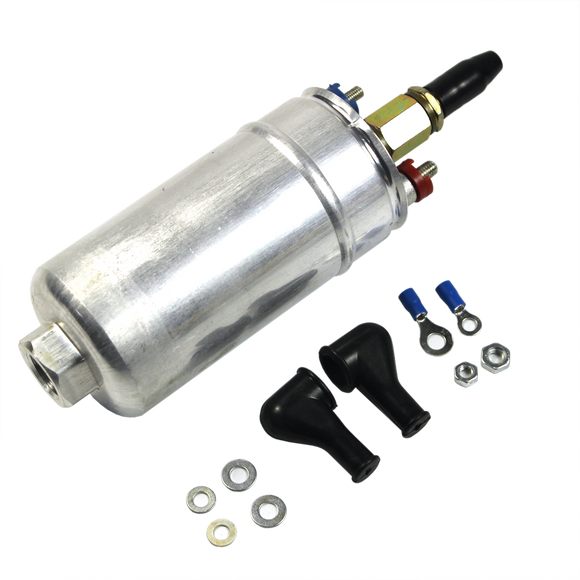

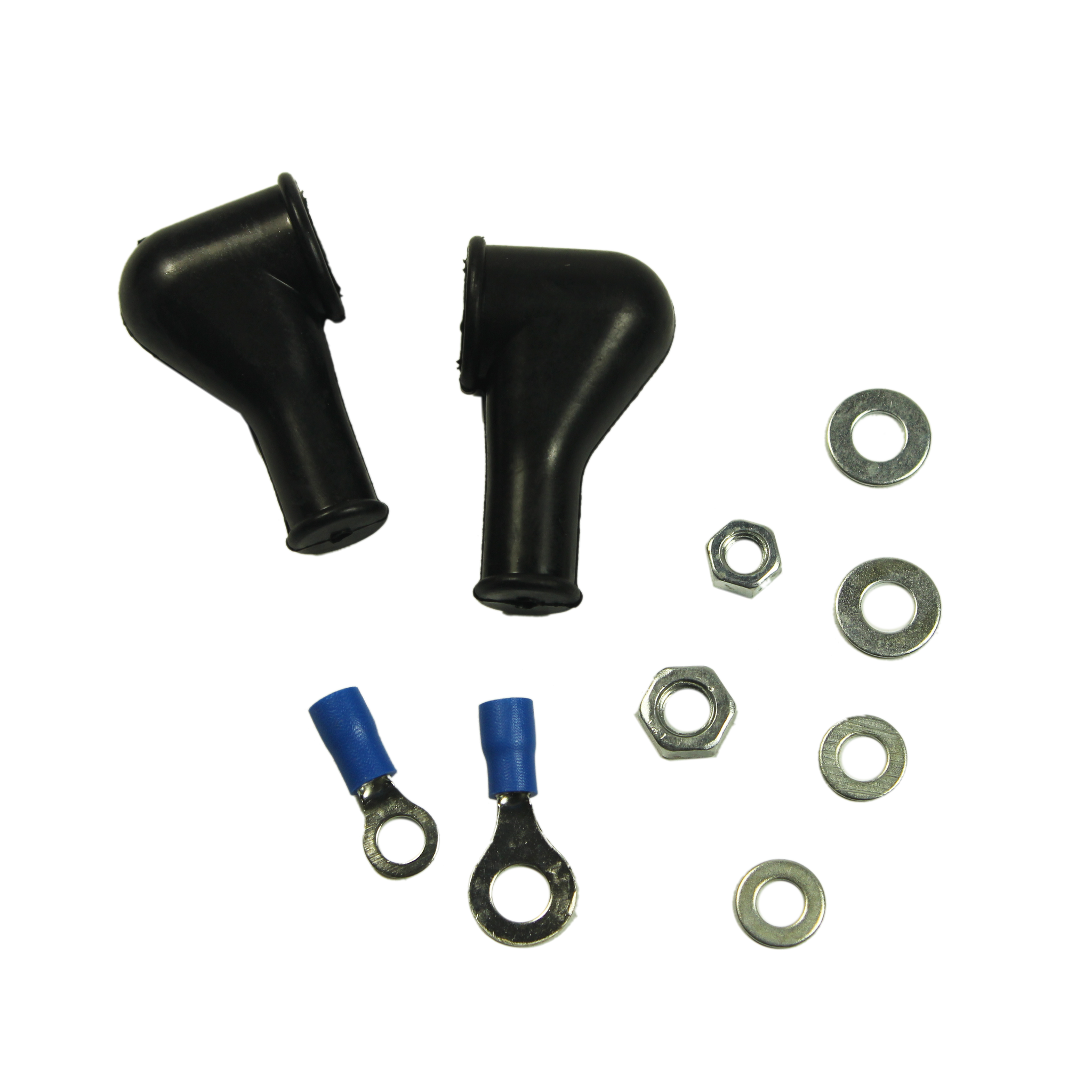

These brand new and high performance pumps flow same rate as 044 pumps. It's used widely in many different types of motorsport, world rally cars, touring cars. The pictures show the exact item with kits for sale.
Part Number: 0580254044
Length: 195mm
Diameter: 60mm
Inlet: M18x1.5 metric threadDiameter: 60mm
Munt in rear center of the car or truck
Can be installed along with a walbro intank fuel pump or alone
Positive terminal is M6, ground terminal is M5
Operating voltage: 12V
Min voltage: 8V
Max voltage: 18V
Operating pressure: 75PSI(5.0Bar)
PRV Activation (0-130PSI)
Flow rate: 200 LPH(53 GPH) under 75PSI(5.0 Bar) & 12V
Flow rate: 300 LPH(80 GPH) under 43PSI(3.0 Bar) & 12V
Flow rate: 300 LPH(80 GPH) under 75PSI(5.0 Bar) & 13.5V
Current: 15A under 75PSI/12V
High temperature reduction: 30 LPH(8 GPH)
Operating temperature range: -20 ℃ - 90 ℃ (-68 °F-194 °F)
Storage temperature range: -40 ℃- 70 ℃ (-104 °F-158 °F)
Recommended horsepower capabilities: up to 750HP for Naturally Aspirated engines & 650HP for turbo/supercharged engines
